RTG Container Crane

Product Introduction

RTG container crane, namely rubber-tyred gantry crane, also commonly referred to as RTG, is a specialized mobile lifting machine used in port container yards and logistics hubs for container stacking, handling, and transfer.

It consists of a gantry frame, power transmission system, hoisting mechanism, gantry travel mechanism, trolley travel mechanism, and telescopic spreader as core structures, and relies on a tire-based travel system for free movement operations.

Types

Working Process

Parts

WEIHUA offers single-girder and double-girder rubber-tyred gantry (RTG) container cranes to meet the needs of various yards and operations. Single-girder RTGs feature a compact design and high maneuverability, making them ideal for small- to medium-sized yards and scenarios requiring rapid deployment; double-girder RTGs, on the other hand, offer greater load-bearing capacity and are suitable for large ports and high-stacking operations.

Whether for medium-load or heavy-load operations, Weihua can provide customized solutions to ensure that the equipment is perfectly matched to site conditions and operational intensity.

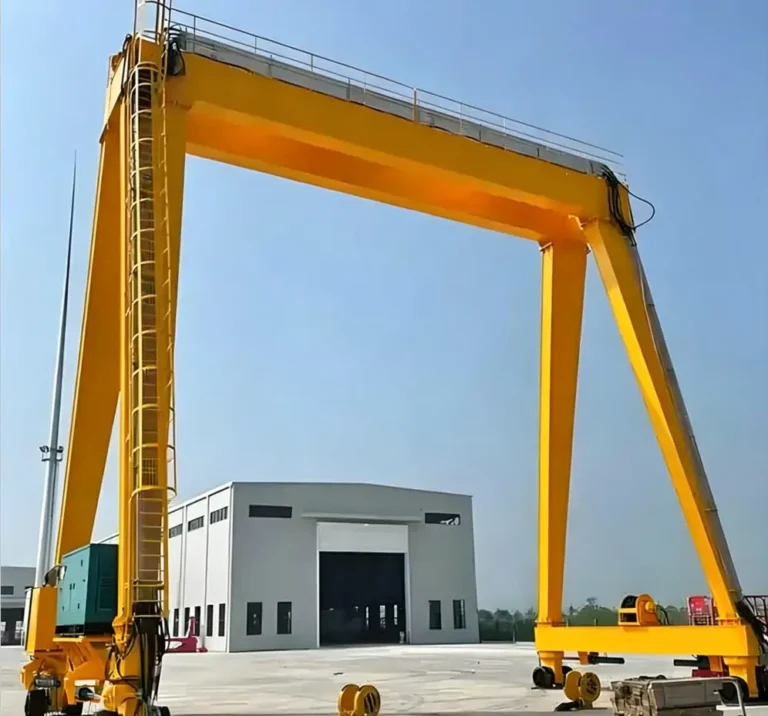

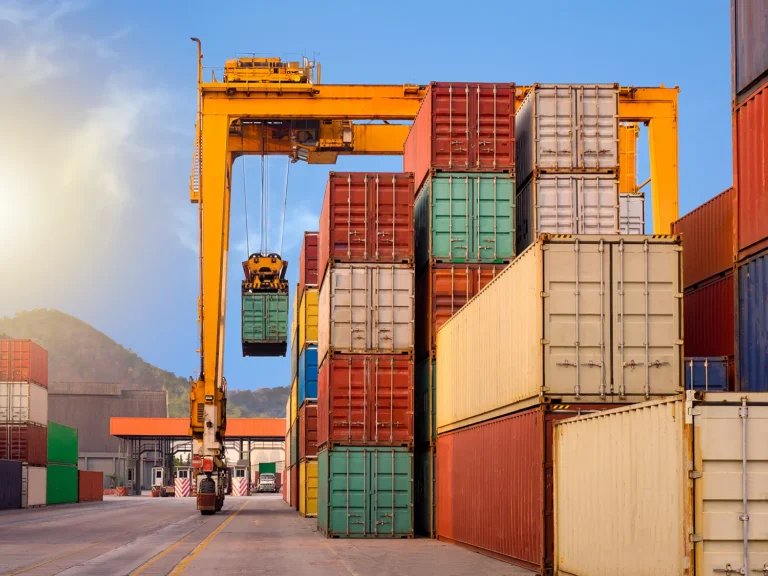

Single-girder RTG container crane

The single-girder RTG has a lightweight main girder, offering flexibility and cost-efficiency. Its low weight, low construction cost, and minimal wind resistance make it ideal for small- to medium-tonnage applications and intermittent high-intensity operations.

• Lifting capacity: 5–40 t
• Span: 6–30 m
• Lifting height: 15–18 m
• Travel speed: 130–160 m/min

Send Inquiry 

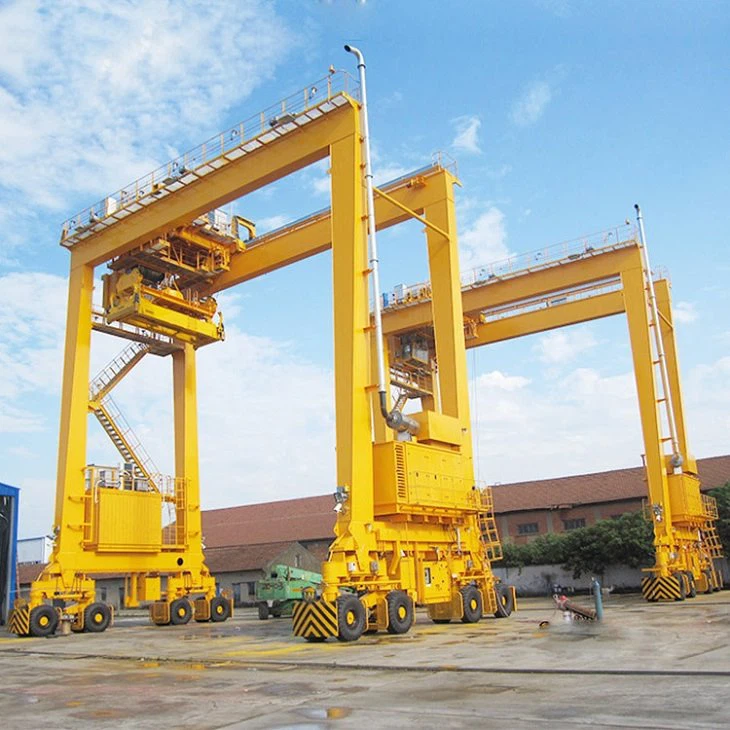

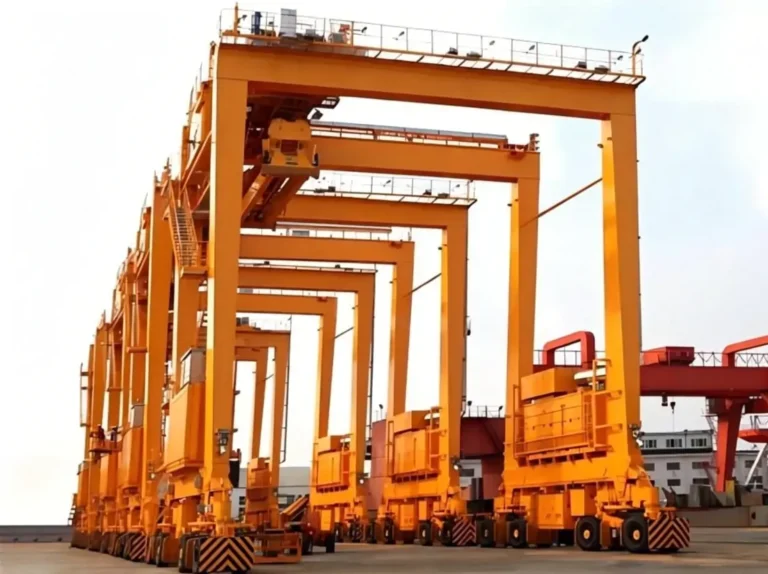

Double-girder RTG container crane

The double-girder RTG features a design with two parallel main girders. It is intended for continuous, high-intensity operations in large port container yards, offering high structural rigidity, excellent operational stability, and superior load-bearing capacity.

• Lifting capacity: 40–65 tons
• Span: 18–35 m
• Lifting height: 18–30 m
• Travel speed: 23–83 m/min

Send Inquiry 

Working Process

RTG container crane (Rubber Tyred Gantry crane) is a core mobile device in port yards for contacontrol, achieving continuous and stable container operations in ports and yards.iner stacking, handling, and cross-area transfer. Its workflow revolves around dispatch instructions, precise positioning, and safe lifting.

Operation Instruction Reception and Inspection
After receiving system instructions, confirm the target operation location and complete equipment inspection, including tires, brakes, steering, communication, and safety environment checks, ensuring operational conditions meet requirements.

Gantry Travel and Positioning
Move the gantry using drive wheels, supporting 90° turning and “crab walking” mode for fast repositioning; with laser/GPS correction and synchronous control, achieve precise zone-level positioning.

Trolley and Spreader Fine Positioning
The trolley moves along the main beam to the target above, the spreader automatically adapts to 20ft/40ft specifications, and the positioning system completes precise four-corner alignment.

Lifting Operation
After the spreader locks the container corner fittings, the hoist starts to lift smoothly to a safe height, with speed control to minimize sway.

Transfer Positioning
The container moves with the trolley to the target area above, for either truck handling or yard stacking, with precise position adjustment completed again.

Lowering Operation
The container is gently lowered to the target position, the twist locks are released, and the spreader disengages, completing a single handling or stacking operation.

Operation Completion
The equipment returns to standby position, anchors are engaged if necessary, and the operation completion status is reported to the dispatch system, waiting for the next instruction.

The entire RTG container crane workflow focuses on precise positioning, efficient transfer, and safe

Parts

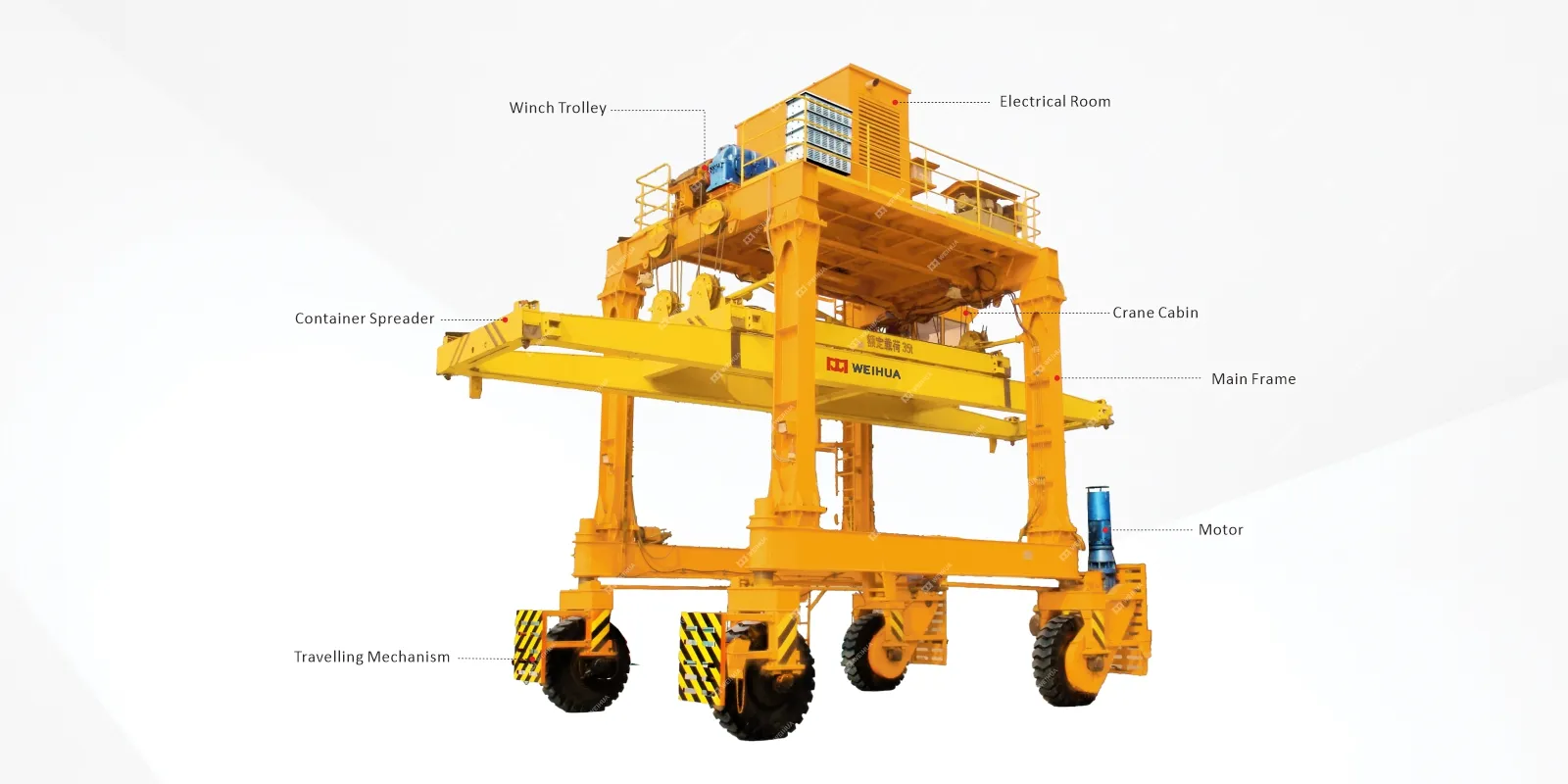

The structure of the RTG container crane (Rubber Tyred Gantry crane) can be divided into four main categories: core metal structure, functional operating mechanisms, power and control systems, and auxiliary safety devices.

Core Metal Structure

Main Beam: Box-type beam supporting trolley rail; central or offset track design.

Gantry Legs: Box structure with internal space for power/electrical rooms, ensuring stability.

Bottom Beam: Supports power units; reinforced for lateral load resistance.

Trolley Frame: I-beam structure with maintenance platforms for easy servicing.

Key Functional Mechanisms

Gantry Travel: Four-wheel drive system; supports 0–90° steering and crab movement for flexible yard transfer.

Trolley Travel: Moves along the beam via wheel or rack drive for precise positioning and anti-slip control.

Hoisting Mechanism: Lifts containers with encoder feedback and limit protection for accurate control.

Telescopic Spreader: Handles 20ft/40ft containers with twist lock, anti-sway, and fine alignment.

Operator Cabin: Ergonomic cabin with full visibility, air conditioning, and integrated controls.

Power & Control Systems

Power System: Diesel, grid power, hybrid, or fully electric options with optional energy recovery.

Control System: PLC + inverter control with laser/GPS positioning and multi-mode operation.

Safety & Auxiliary Devices

Includes overload protection, limit switches, wind alarm, anti-collision, deviation correction, emergency stop, and tire pressure monitoring.

The RTG container crane combines a stable steel structure, reliable working mechanisms, flexible power options, and multiple safety systems. It delivers steady performa

Specifications

RTG container crane is the abbreviation of Rubber Tyred Container Gantry Crane, which is a special mobile handling equipment for container yards. The main specifications are as follows:

In actual production, RTG can customize parameters such as span, lifting capacity, and lifting height according to the actual operation needs of the yard. The design and manufacturing of products need to comply with national standards GB/T 14783-2009 and international standards.

Advantages

Modern RTG container crane offers high flexibility, energy-efficient power, and intelligent control to meet diverse port and yard operational needs.

1. High Mobility
   Travels on pneumatic rubber tires without fixed rails, saving rail construction costs and time. Multi-mode steering supports straight travel, 90° turns, on-spot rotation, and “crab walk,” adapting to different yard layouts.
2. Versatile and Green Power Options
   Supports grid power, diesel + lithium hybrid, and full electric solutions. Some hybrid models can recover energy from container descent, reducing fuel consumption and emissions.
3. High Control Precision and Multiple Operation Modes
   Digital AC frequency conversion and PLC control, combined with laser/GPS positioning, ensure precise travel and lifting. Supports manual, semi-automatic, automatic, and remote operations; some models allow fully unmanned stacking.
4. Good Site Adaptability

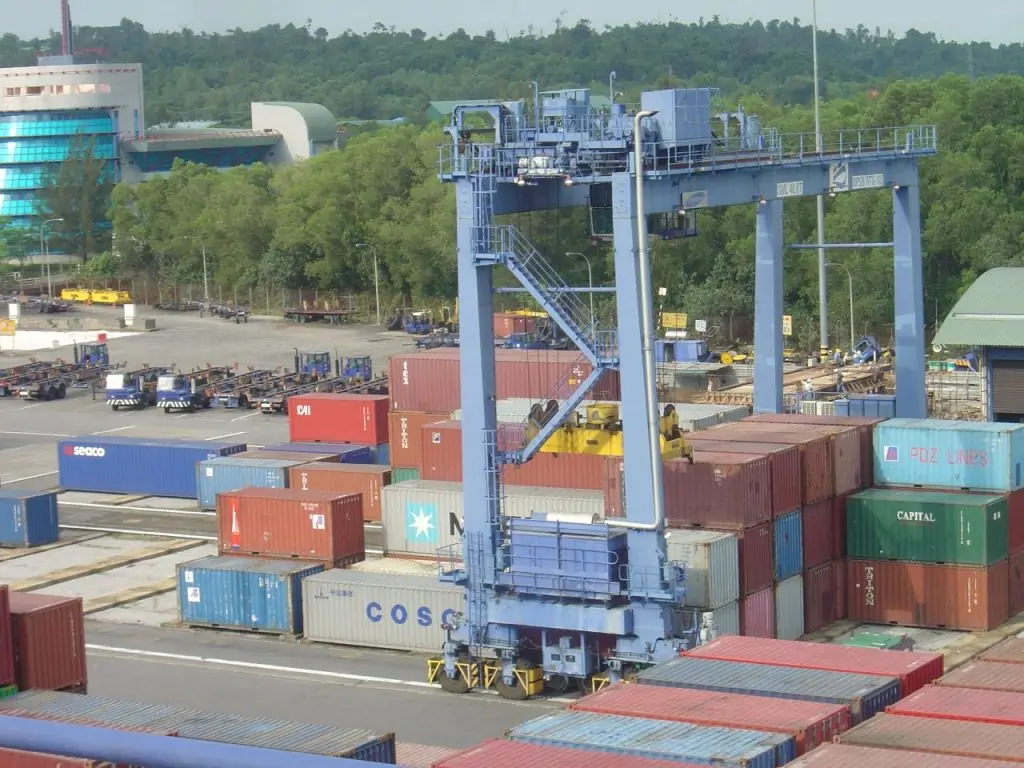

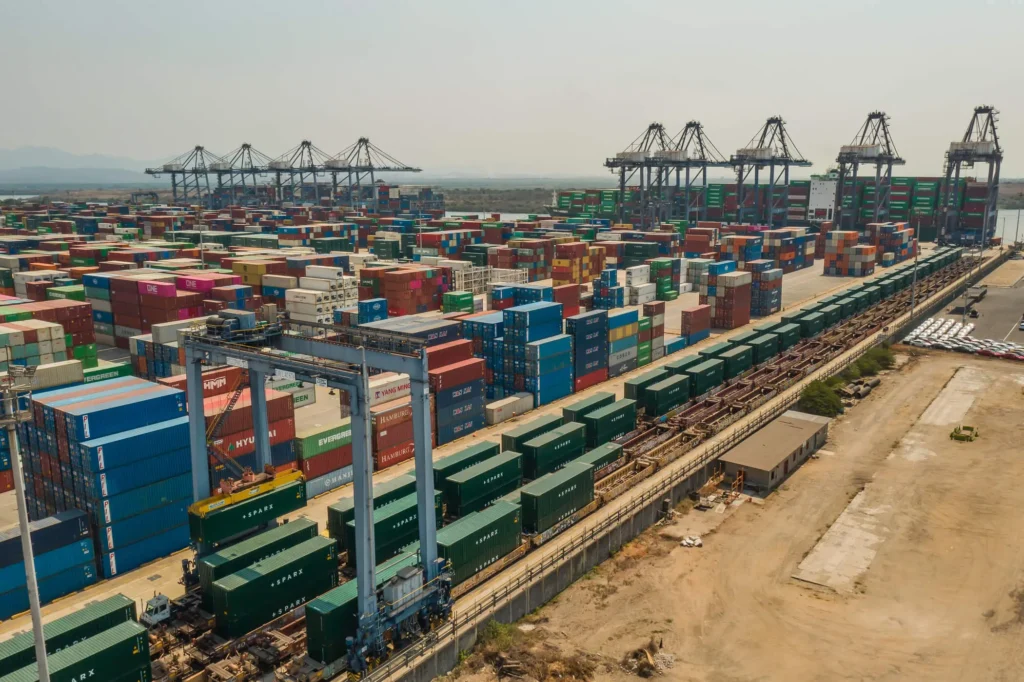

   Does not rely on fixed rails and tolerates uneven ground. Suitable for small and medium ports, temporary yards, railway freight stations, and dry ports. Large ports can use RTG alongside RMG to balance efficiency and scheduling flexibility.
5. Comprehensive Safety Design
   Equipped with overload protection, wind alarms, dynamic safety scanning, and safety indicators to fully protect equipment and operators.

The RTG container crane combines flexible mobility, energy-efficient power, precise control, and comprehensive safety to efficiently meet complex operational demands in ports, yards, and various logistics scenarios.

Applications

With its flexible mobility and rail-free deployment, the RTG container crane is widely used in container and heavy load handling:

The RTG container crane, with its flexible mobility and fast deployment, serves diverse operations in ports, rail, and industrial yards.

Precautions

As a highly mobile heavy-duty device, the safe operation of RTG container cranes depends on standardized procedures and systematic management in ports and yards.

• Weather Conditions: Strong winds or severe weather conditions require a shutdown. During standby, anchoring devices must be activated to ensure stability.
• Ground Conditions: Operation requires a solid, level, and well-compacted yard surface to maintain stability and accurate travel.
• Load Control: Strictly follow the rated lifting capacity. Ensure proper container locking and load balance before lifting.
• Movement Operation: Avoid sudden starts, stops, or sharp turns. Use steering modes correctly to reduce structural stress and load sway.
• Power Safety: For electric or hybrid systems, maintain a stable power supply and inspect cables, grounding, and electrical components regularly.
• Operator Requirements: Only trained personnel are allowed to operate the crane, following standardized procedures for all lifting tasks.
• Maintenance Inspection: Regularly check key components such as tires, brakes, wire ropes, hydraulic systems, and control units.
• Safety Devices: Ensure all protection systems, including overload limiter, wind alarm, anti-collision, and emergency stop, are fully functional before operation.

Safe operation of RTG container crane depends on controlled working conditions, correct operating procedures, and regular inspection to ensure stable and efficient performance in port and terminal environments.

WEIHUA Customization Services

WEIHUA RTG container crane can be fully customized according to yard layout, operational requirements, and working mode, covering structure, power systems, automation, and key components.

Capacity & Structure

Custom lifting capacity, span (10–35m), and lifting height (4–8 layers) for different yard layouts and workloads.

Structural Types

Optional single-girder, Freerider, or folding designs to reduce wind load or save yard space.
Lifting attachments are a customizable option. For information on the available types, please see: RTG Crane Spreader

Spreader Customization

Special spreaders for 20ft/40ft, reefers, open-top, and rail containers with optional temperature control.

Power Systems

Diesel, grid, battery, or hybrid options with energy-saving and energy recovery configurations.

Automation Upgrade

Supports upgrade from assisted operation to full automation, compatible with smart terminal systems.

Delivery Solutions

Customized transport and installation for inland, seasonal, or oversized export conditions.

Retrofit Upgrade

Old RTG upgrades for PLC, drives, and control systems to improve reliability and extend service life.

Component Customization

Tailored key components for full compatibility with existing terminal equipment.

As a professional RTG container crane manufacturer and supplier, WEIHUA has extensive experience in customized export projects and a well-established engineering and technical team. It provides reliable, tailored solutions for different working conditions. Contact us for professional configuration advice and project support.

Custom RTG container crane

We offer a full range of customized RTG Cranes for Container Handling services, including Electric RTG Cranes, Intermodal RTG cranes, The following is custom options:

• Load capacity customization (35t-300t)
• Span, stacking height, and lane configuration customization
• Power options: Diesel / Hybrid / All-electric / Automated
• Tire count and steering mode(RTG crane tires are classified as pneumatic and solid.)
• Intelligent and automated configurations
• Design tailored for diverse operating conditions in ports, railways, and factories

Get Custom Quotation Now

RTG container crane Manufacturer and Supplier

As a trusted RTG container crane manufacturer and supplier, Weihua provides complete container handling solutions for ports, rail terminals, inland depots, and logistics hubs worldwide. Beyond equipment manufacturing, we support customers throughout the entire project lifecycle, from technical consultation and custom engineering to installation, commissioning, operator training, and after-sales service.

We have extensive experience in heavy-duty crane manufacturing and export projects across more than 117 countries and regions, Weihua can customize RTG cranes to match your yard layout, stacking requirements, power supply conditions, and operational goals. Contact Weihua today for customized RTG crane solutions, technical consultation, layout design support, and a competitive quotation tailored to your container handling requirements.

After-Sales Service

Weihua, founded in 1988, has evolved into a global leader in China's intelligent manufacturing field. We specialize in smart crane R&D and production while offering AGV solutions. Our professional engineering, delivery, and after-sales teams provide one-stop technical support, customized solutions, on-site installation guidance, and rapid-response global services to ensure every project operates safely and efficiently.
