Marine travel lift prices typically range from USD 80,000 to USD 1,200,000+, depending on lifting capacity, span width, wheel system, power configuration, and site customization.

Small-capacity models for marinas and boat repair yards are generally priced between USD 80,000 and USD 300,000, while medium to large travel lifts for commercial shipyards commonly range from USD 300,000 to USD 800,000. For heavy-duty customized systems above 300 tons, the total price can exceed USD 1,200,000. Beyond lifting capacity, the final cost is also influenced by factors such as lifting height, travel width, tire quantity, electric or diesel drive systems, and site-specific customization requirements. Below, we will analyze the key pricing factors in detail to help buyers make an informed purchasing decision.

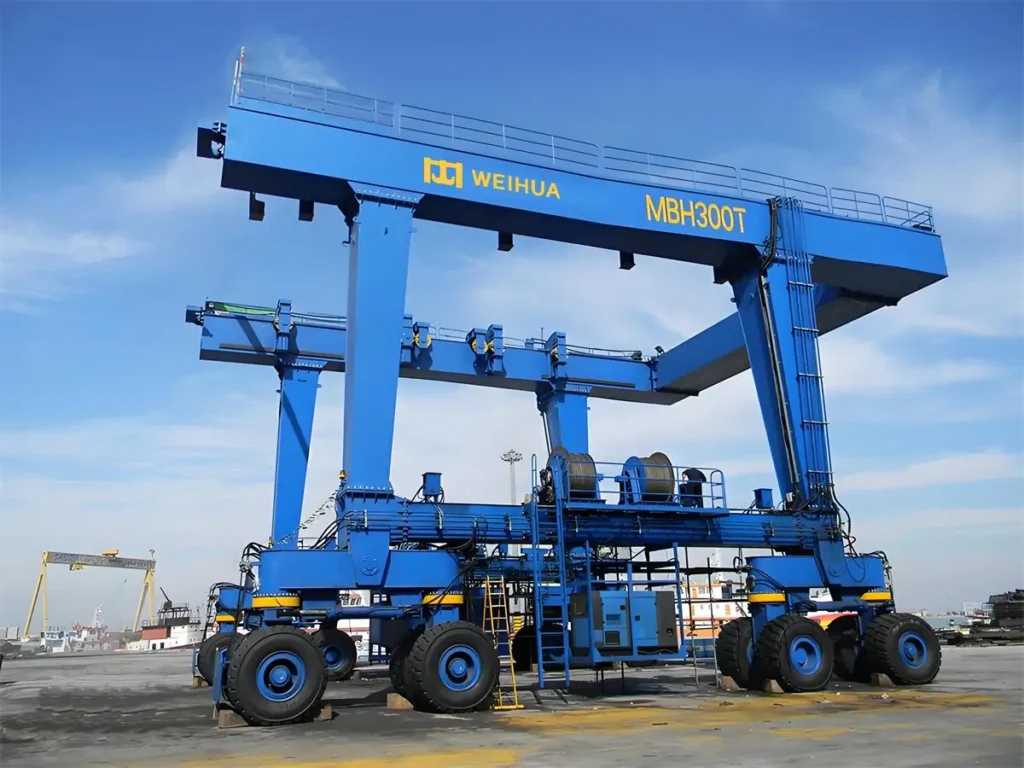

Автомобильный морской портальный кран
морской трейлер-подъемник

How Much Does a Marine Travel Lift Cost?

Marine travel lift prices typically range from USD 80,000 to USD 1,200,000+, depending on lifting capacity, span width, drive system, and customization requirements. For most buyers, the fastest way to estimate budget is to compare price ranges by tonnage. The table below provides a practical market reference for common capacity options.

ВместимостьTypical Span WidthSuitable Vessel TypeReference Price Range (USD)
25 Ton6–8 mSmall boats, fishing vessels80,000 – 120,000
50 Ton7–10 mЯхты, скоростные катера120,000 – 220,000
100 Ton8–12 mMedium yachts, work boats280,000 – 380,000
150 Ton10–14 mTugboats, service vessels380,000 – 500,000
200 Ton12–16 mLarge yachts, patrol boats500,000 – 650,000
300 Ton14–18 mCommercial vessels, barges650,000 – 850,000
500 Ton+18–25 mShipyard heavy-duty lifting900,000 – 1,200,000+

These prices are intended as a general purchasing reference. The final quotation may vary based on factors such as lifting height, steering mode, wheel quantity, electric or diesel drive, anti-corrosion treatment, and site-specific customization. In most projects, customized configurations can increase the total investment by 10% to 30% compared with the standard model.

For buyers planning a new marina or shipyard project, it is recommended to first confirm the maximum vessel weight, beam width, and daily lifting frequency, as these directly affect the most suitable tonnage and final budget.

Marine Travel Lift Price by Capacity: How to Choose the Right Tonnage?

Marine travel lift pricing is primarily determined by lifting capacity, but the right tonnage should be selected based on vessel size, daily handling frequency, and future business growth. Choosing too small a capacity may limit operations and increase safety risks, while oversizing can lead to unnecessary investment.

As a practical reference, small marinas and service yards typically choose 50-ton models, medium repair facilities often prefer 100-ton units, while commercial shipyards usually require 300 tons or above. Large vessel construction projects may need 500-ton travel lifts or higher.

Below is a quick guide to common capacity ranges, typical applications, and estimated price levels.

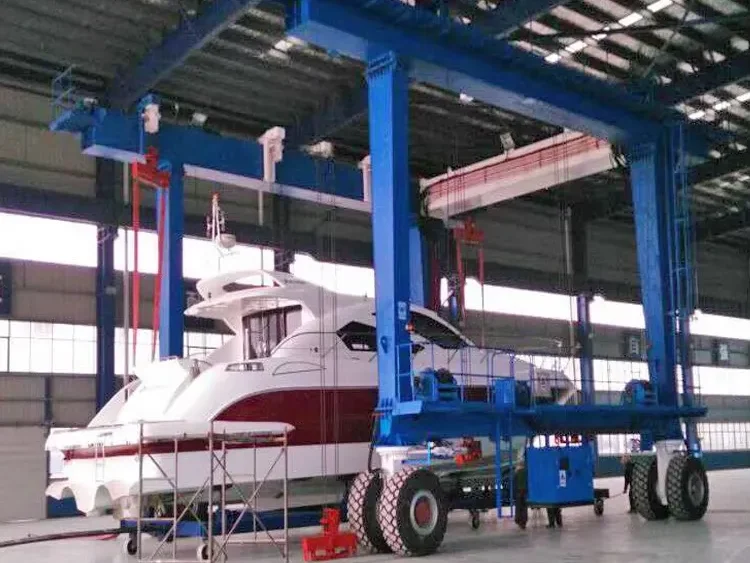

50 Ton Marine Travel Lift

Suitable for small marinas, yacht clubs, and maintenance workshops handling leisure boats and small yachts.

  • Application: small boat storage and repair
  • Typical vessel size: up to 40–60 ft
  • Estimated price: USD 80,000–150,000
  • Лучше всего подходит для: budget-conscious buyers and light-duty operations
50 Ton Marine Travel Lift

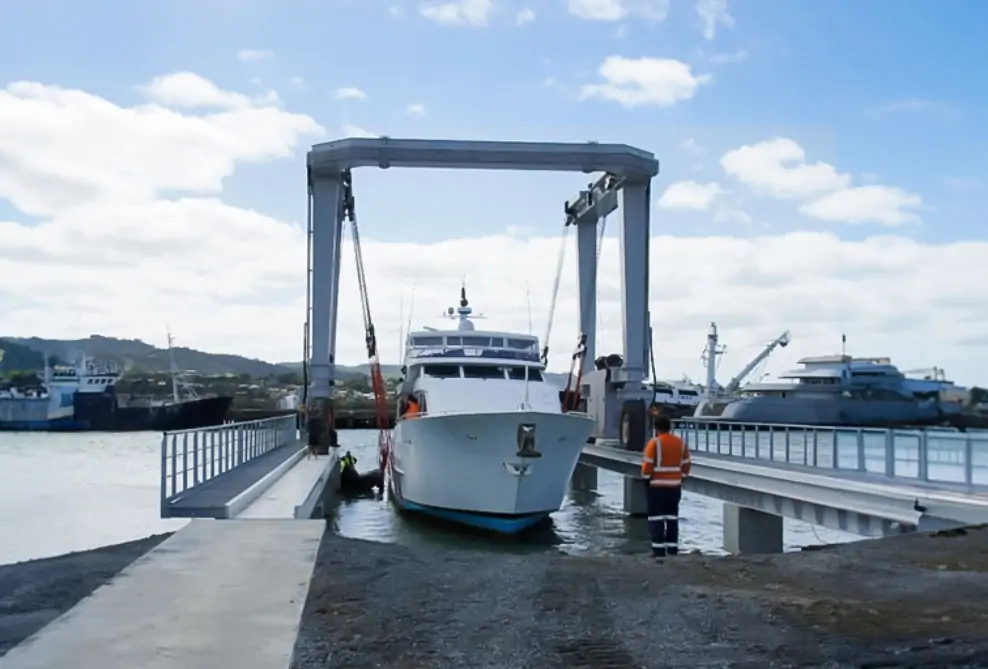

100 Ton Marine Travel Lift

A common choice for medium-sized boatyards and repair facilities serving mixed vessel types.

  • Application: yacht service and fishing vessel maintenance
  • Typical vessel size: 60–100 ft
  • Estimated price: USD 150,000–280,000
  • Лучше всего подходит для: growing marine service businesses
100 Ton Marine Travel Lift

300 Ton Marine Travel Lift

Designed for commercial shipyards and heavy-duty vessel handling projects.

  • Application: large yacht transfer and shipyard production
  • Typical vessel size: 100–180 ft
  • Estimated price: USD 450,000–700,000
  • Лучше всего подходит для: frequent heavy-load operations
300 Ton Marine Travel Lift

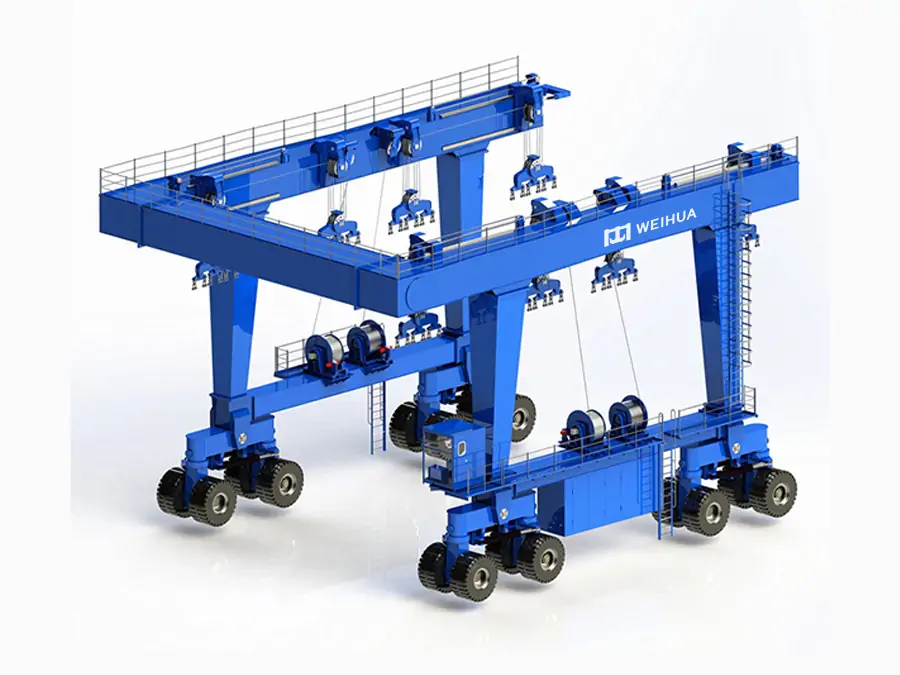

500 Ton and Above

Best suited for large shipbuilding yards and industrial marine projects.

  • Application: commercial vessel construction and offshore projects
  • Estimated price: USD 700,000–1,200,000+
  • Лучше всего подходит для: high-capacity long-term investment
500 Ton Marine Travel Lift

Selection Tip

As a general rule, choose a travel lift with 20–30% higher capacity than your maximum vessel weight. This provides a safer operating margin and allows room for future expansion.

What Affects Marine Travel Lift Price?

Marine travel lift pricing is influenced by far more than the lifting capacity shown on the specification sheet. In real purchasing scenarios, two units with the same tonnage can have noticeably different quotations because project requirements, yard conditions, and configuration choices all affect the final cost. For example, a standard 100-ton model may start around USD 300,000, while a fully customized version for a commercial shipyard can be significantly higher. To estimate a realistic budget, buyers need to look at the main cost factors behind the equipment price.

1. Lifting Capacity

Capacity is usually the first factor that affects price. As the rated tonnage increases, the lift requires a stronger steel frame, larger wheel assemblies, a more powerful hydraulic system, and higher-grade safety components. A 50-ton model is typically much more affordable than a 200-ton or 300-ton unit, simply because the material and engineering requirements increase substantially.

2. Span Width and Lifting Height

The overall dimensions of the travel lift also have a direct impact on cost. Wider span widths are needed for larger yachts, catamarans, or vessels with greater beam width, while higher lifting clearance may be required for maintenance and launching operations. More width and height mean more steel usage, stronger structural support, and additional stability considerations, all of which raise manufacturing costs.

3. Wheel System and Steering Configuration

The wheel system is another major pricing factor. Basic models usually come with standard multi-wheel steering, while high-end configurations may include 90-degree steering, diagonal travel, or all-wheel synchronized movement for better maneuverability in confined shipyard spaces. The more flexible the steering system, the higher the equipment cost tends to be.

4. Power and Drive System

Buyers also need to consider whether the lift uses an electric or diesel drive system. Diesel-powered units often have a lower initial purchase cost and are suitable for outdoor yards without stable power supply. Electric models generally cost more upfront but are often preferred by modern marinas because of lower long-term operating and maintenance costs.

5. Site Customization and Project Requirements

Site-specific customization can significantly affect the final quotation. Factors such as corrosion-resistant coating for saltwater environments, non-standard voltage, lifting speed requirements, anti-sway protection, and local safety compliance may all add to the total investment. In many cases, customized solutions can increase the base price by 10% to 30%, depending on the project.

Weihua Cases Show

В Иран поставлен 300-тонный кран для перемещения лодок и яхт в рамках расширения судостроительного завода.

In April 2017, our 300-ton boat lifting gantry crane was successfully commissioned at a shipyard in Bushehr, Iran, supporting the customer’s yard expansion and vessel handling upgrade.

The installation significantly enhanced boat transfer efficiency, increased overall yard throughput, and made better use of the available workspace for larger yacht and vessel operations.

  • Equipment Type: Boat Lifting Gantry Crane
  • Грузоподъемность: 300 Tons
  • Project Location: Bushehr, Iran
  • Commissioning Date: April 2017
Смотреть ещё
300-тонный кран для погрузки и разгрузки лодок

Заключение

Choosing the right marine travel lift is not only about price, but also about matching the lifting capacity, vessel size, yard layout, and long-term operational needs. From 50-ton marina applications to 500-ton shipyard projects, understanding the cost range and key pricing factors helps buyers make a more informed investment decision.

At Вэйхуа, we provide customized marine travel lift solutions for marinas, yacht service centers, and commercial shipyards worldwide. With extensive project experience, reliable engineering support, and tailored configurations, we help clients find the right equipment for both performance and budget.

If you need a latest marine travel lift price, capacity recommendation, or custom quotation for your project, feel free to contact Weihua’s team for expert advice and a fast quote.

Часто задаваемые вопросы

1. What is the average marine travel lift price?

Marine travel lift prices typically range from USD 80,000 to over USD 1,200,000, depending on lifting capacity, span width, wheel steering system, and custom requirements. Small marina models cost less, while shipyard-grade units are significantly higher.

2. How much does a 100 ton marine travel lift cost?

A 100-ton marine travel lift usually costs around USD 150,000–280,000. The final price depends on lifting height, wheel configuration, power system, and whether installation or operator training is included.

3. How do I choose the right lifting capacity?

As a general rule, select a travel lift with 20–30% more capacity than your maximum vessel weight. This provides a safe lifting margin and allows room for future vessel size upgrades.

4. Is installation included in the quoted price?

This depends on the supplier. Some quotes cover equipment only, while others include shipping, on-site installation, commissioning, and load testing. Buyers should always confirm the quotation scope before purchase.

5. What factors have the biggest impact on price?

The main cost drivers are lifting capacity, span width, lifting height, steering system, and corrosion protection level. For example, a customized 300-ton unit may cost 30–50% more than a standard model.

6. How long is the delivery time?

For standard models, production usually takes 45–90 days. Large customized marine travel lifts, especially above 300 tons, may require 90–150 days, depending on design complexity and shipping schedule.

7. What is the annual maintenance cost?

Annual maintenance typically accounts for around 3–5% of the equipment value, including tires, hydraulic systems, lifting belts, and regular safety inspections.

8. Can the travel lift be customized for my shipyard?

Yes. Most suppliers offer customization based on vessel beam, lifting route, yard width, climate conditions, and local safety standards, ensuring the equipment fits your actual operating environment.
