Steel Mill Crane Selection Guide: Types, Applications, and How to Choose

Introduction

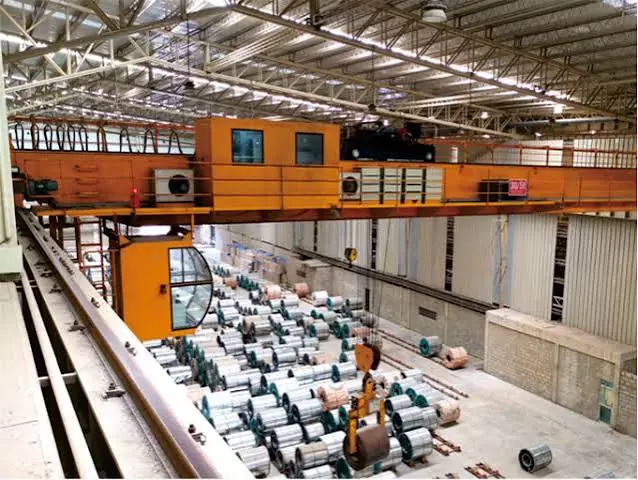

Steel mills require reliable lifting equipment to handle heavy steel products, molten metal, raw materials, and production components throughout the manufacturing process. Due to high loads, high temperatures, dust, and continuous operation, steel mill cranes must be designed with suitable capacity, safety features, and working performance. Steel mill cranes are designed to support material handling throughout the steel manufacturing process, from ironmaking and steelmaking to rolling and finished product storage.

This guide introduces the common types of steel mill cranes and their applications in different production processes. It also explains how to select the right crane by considering lifting capacity, working conditions, operating frequency, safety requirements, and customized lifting needs.

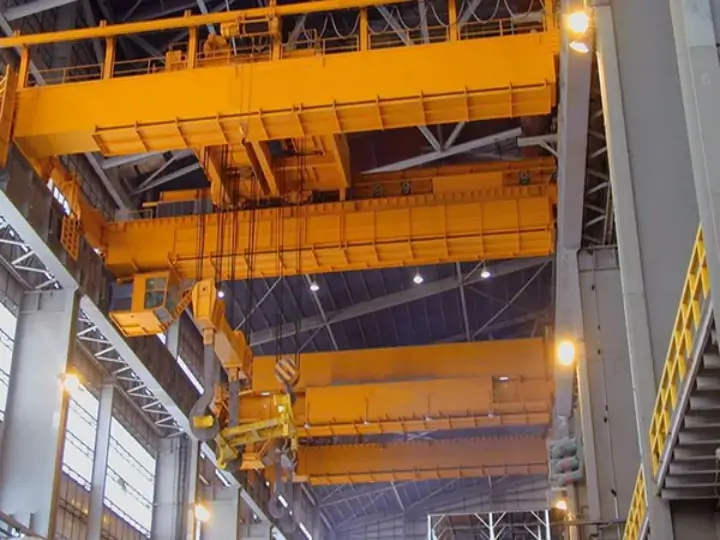

What Is a Steel Mill Crane?

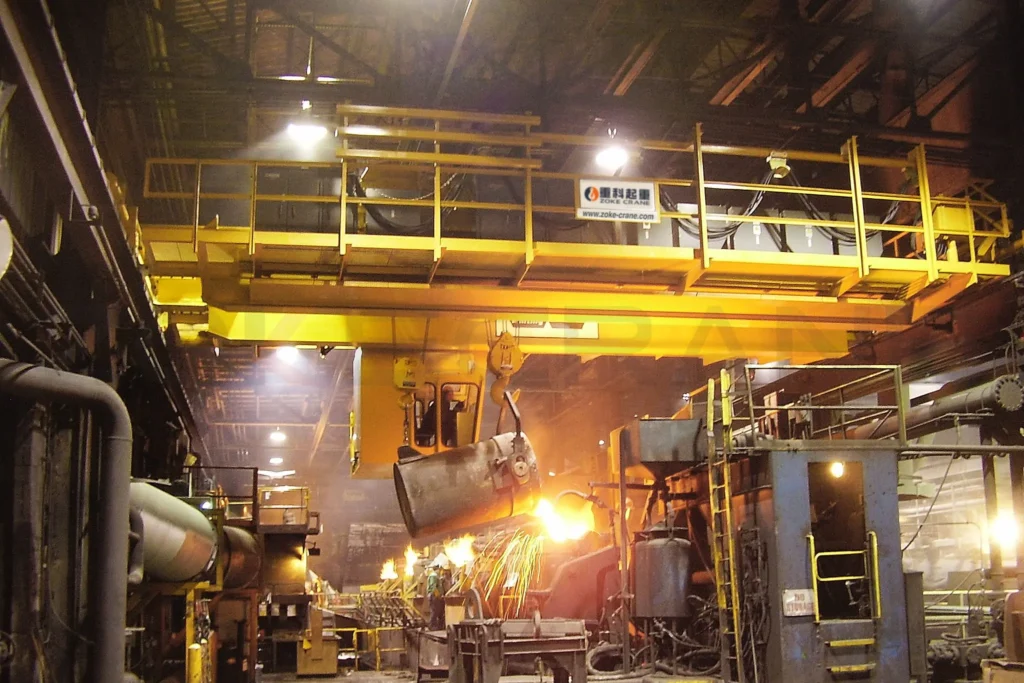

A steel mill crane, also known as a metallurgical crane or steel plant crane, is a heavy-duty overhead crane specially designed for steel production environments, including ironmaking, steelmaking, continuous casting, and rolling processes. It is mainly used for handling molten iron, steel ladles, billets, coils, and other heavy steel materials under high-temperature, heavy-load, and continuous operating conditions.

Types of Steel Mill Cranes

Different steel production processes require different crane configurations. Crane selection depends on lifting capacity, material type, operating temperature, and working conditions.

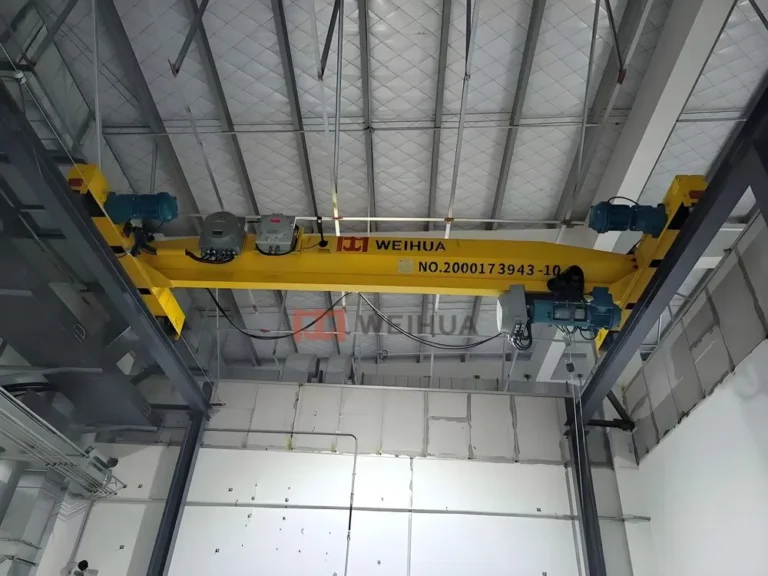

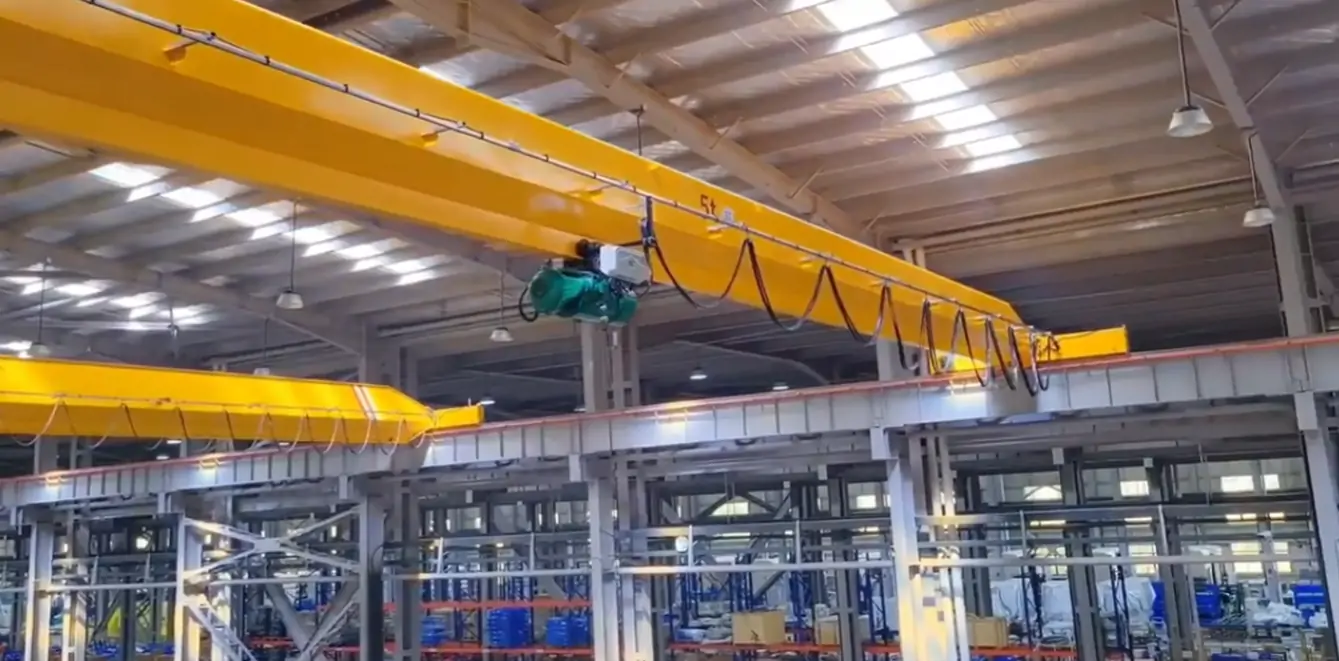

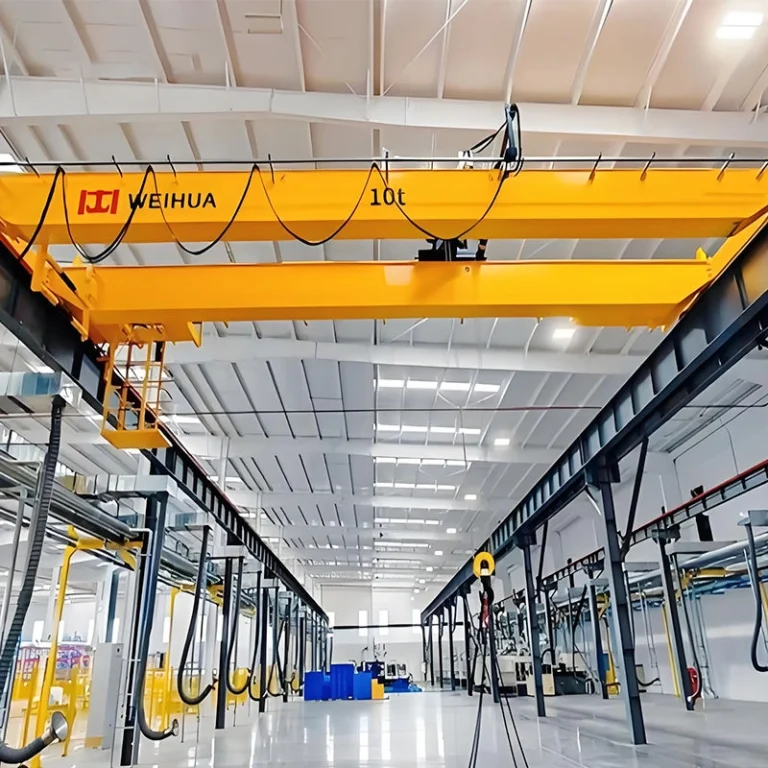

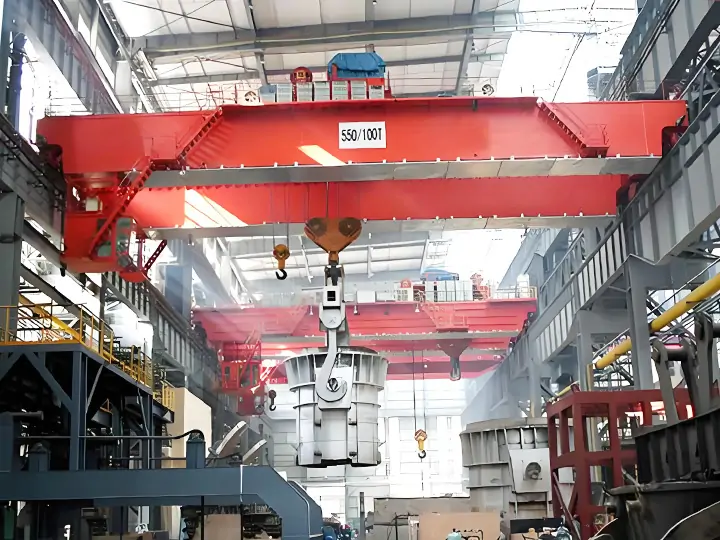

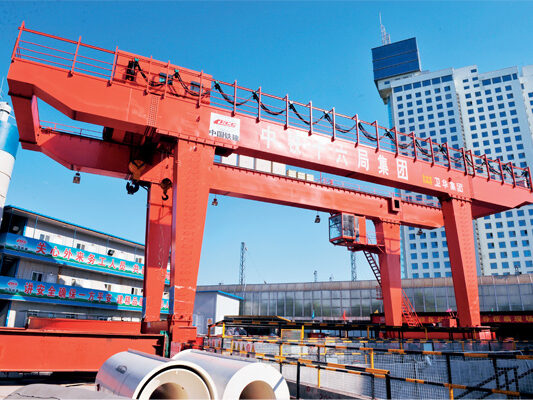

Different steel mill processes require different crane types. Ladle cranes and metallurgical cranes are used for molten steel handling, while overhead cranes, electromagnetic cranes, and gantry cranes are commonly used for steel material transportation and storage.

How to Select the Right Steel Mill Crane?

Steel mill cranes often operate in high temperatures, heavy dust, and continuous-duty environments. The crane design should match the material type, lifting capacity, and working conditions of the steel plant.

• Lifting Capacity — Lifting capacity determines the crane specification. Steel mill cranes usually range from 50 tons to over 500 tons, depending on applications such as ladle handling, billet lifting, and steel coil transportation.
• Working Duty Class — Steel mill cranes often work under continuous heavy-duty conditions. Duty classes A6–A8 are commonly used for frequent lifting cycles in steel production.
• Temperature and Dust Environment — Steel plants involve high temperatures, dust, and furnace radiation. Cranes for molten metal handling require heat-resistant structures and protected electrical components. Some applications operate above 60°C.

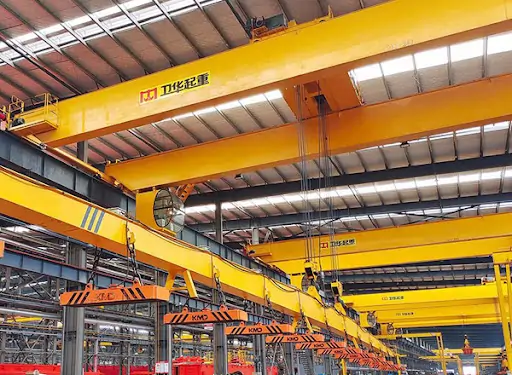

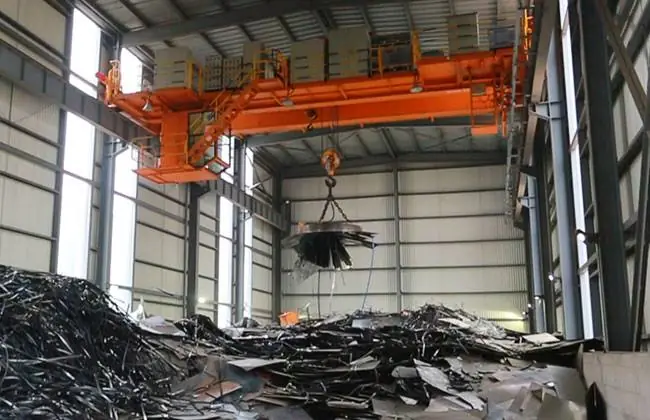

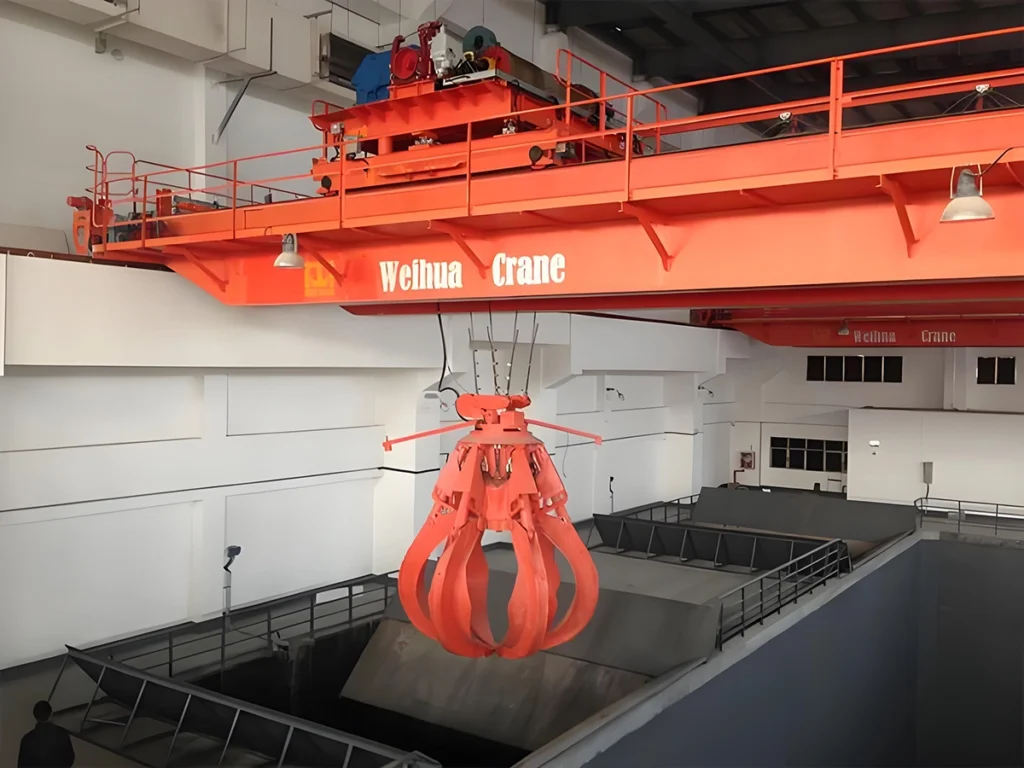

• Lifting Materials — The handled material determines the crane type and lifting attachment. Ladle cranes are used for molten steel, electromagnetic cranes for steel plates and scrap, and grab cranes for bulk materials such as coal and ore.
• Span and Lifting Height
• Span and lifting height should match the workshop structure and handling route. Steel mill cranes often require large spans and lifting heights for furnace areas, casting lines, and storage yards.
• Operation Mode — Operation mode depends on the working environment and control requirements. Common options include cabin control, pendant control, and remote control for high-temperature areas.

The best steel mill crane isn’t necessarily the cheapest option—it matches your specific operating conditions, provides adequate safety margins, and delivers reliable performance over decades of heavy use.

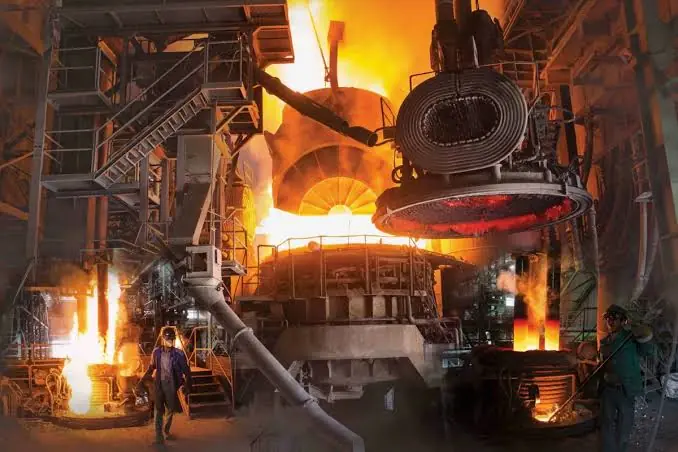

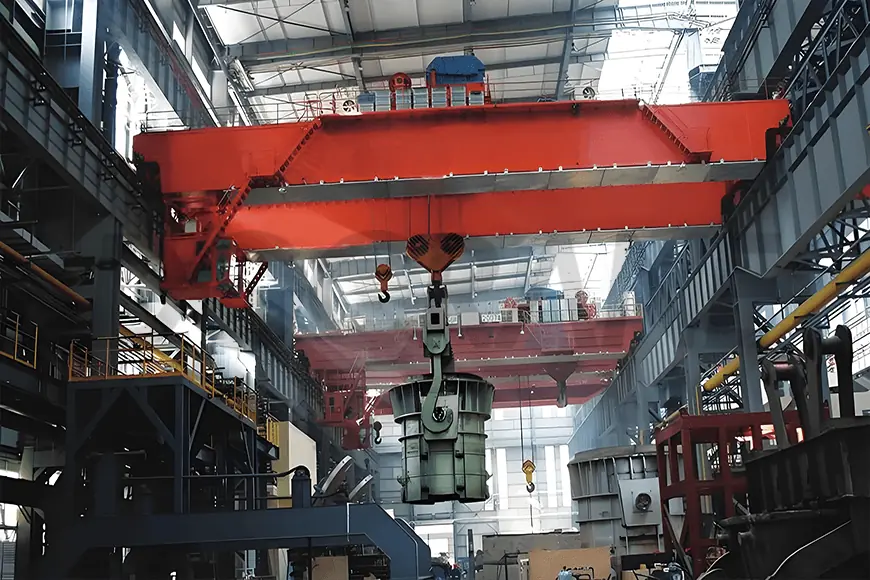

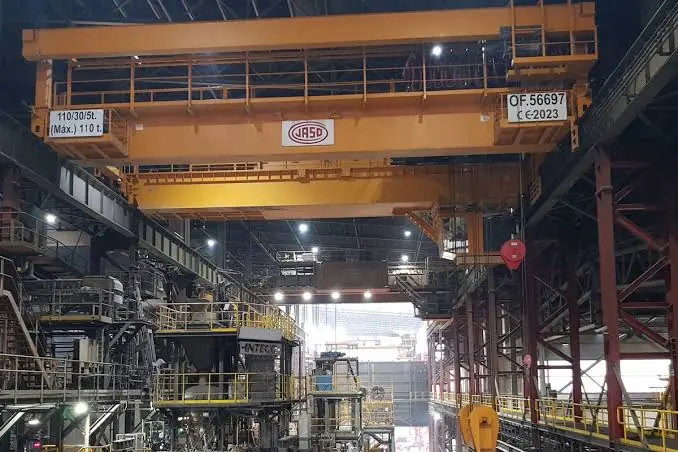

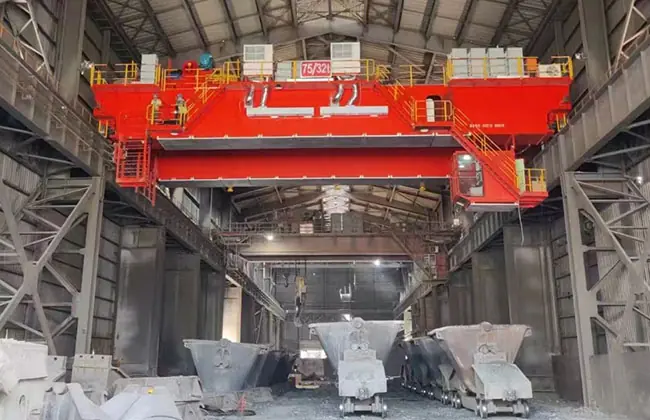

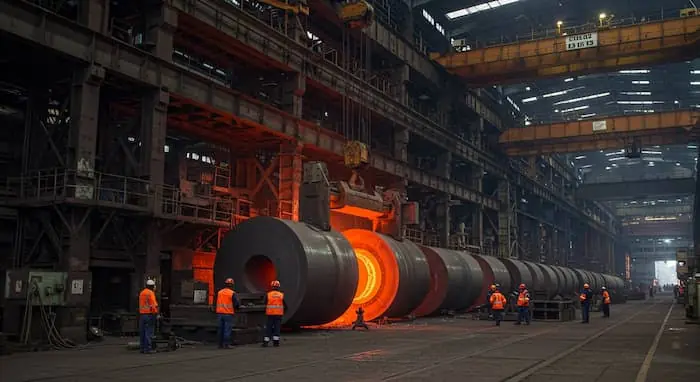

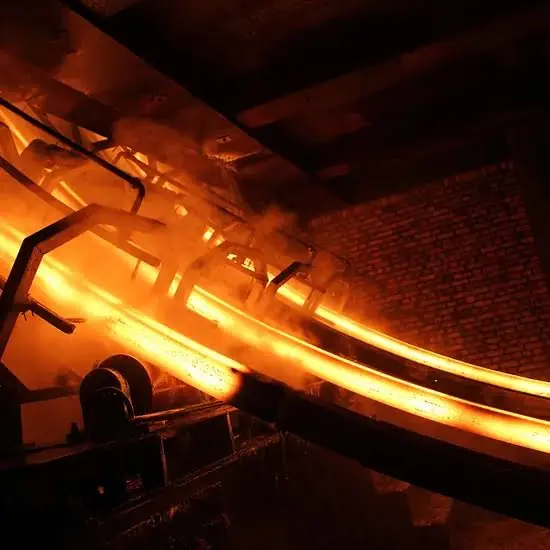

Steel Mill Crane Selection by Application

Steel plants include multiple production processes, and each area has different lifting requirements. Crane selection depends on load weight, temperature, working frequency, and material handling method.

Security Configuration

Steel mill cranes work with heavy loads, high temperatures, and frequent lifting cycles. Crane duty classification should match the operating frequency and load spectrum defined by FEM standards.

• Dual Braking System: A dual braking system includes a working brake and a safety brake. It is mainly used for ladle cranes and heavy-duty metallurgical cranes.
• Overload Protection System: Monitors lifting loads and stops operation when the rated capacity is exceeded. Used on cranes from 50 tons to 500+ tons.
• Lifting Height Limit Protection: Upper and lower limit switches control hook travel and prevent over-travel.
• Anti-Collision System: Monitors crane movement to prevent collisions between cranes and equipment.
• Heat-Resistant Protection: Includes heat shields, insulation, and protected electrical components for high-temperature areas.
• Remote Monitoring System: Monitors crane status, including motor, brake, and fault information.

Learn more about steel mill crane safety devices, protection systems, and inspection standards in our detailed guide: Overhead Crane Safety Devices: Types, Functions, and Working Principles

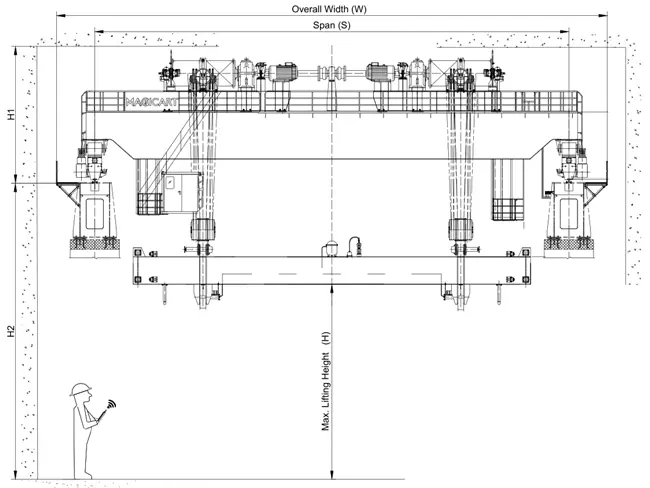

Custom Steel Mill Crane

WEIHUA provides customized steel mill crane solutions based on production processes, lifting requirements, and operating conditions.

Conclusion

Steel mill crane selection should match the lifting capacity, production process, and working environment. Ladle cranes, metallurgical cranes, overhead cranes, and other specialized cranes are designed for different steel handling applications, from molten steel transfer to finished product storage.

WEIHUA provides customized crane solutions for steel mills, including crane design, lifting systems, safety devices, and control systems. Please feel free to contact us to select the right crane for your production needs.
