WEIHUA supplied an RMG crane for a container yard project in Mongolia. The rail-mounted gantry crane is used for container handling, stacking, and yard transfer operations, supporting daily logistics activities in the terminal area.
This case introduces the project background, application requirements, and WEIHUA’s customized rail-mounted gantry crane solution for overseas container handling projects. The project reflects WEIHUA’s experience in designing and supplying container handling equipment for different operating environments.
Project Overview
For this Mongolia container yard project, WEIHUA supplied an RMG crane for daily container handling operations. The customer required reliable rail-mounted equipment for container lifting, stacking, and transfer tasks in the terminal area. Based on the site application and handling requirements, WEIHUA provided a customized rail-mounted gantry crane solution designed for outdoor container yard operations.
- Project Location: Mongolia
- Equipment: RMG Crane
- Application: Container Yard Handling
- Industry: Logistics / Container Terminal
- Equipment Type: Rail Mounted Gantry Crane
Customer Requirements
For this container yard project, the customer needed an RMG crane for regular container handling work in Mongolia. The crane was required to handle daily container lifting, stacking, and transfer operations in the yard with stable performance.
Container Handling
The crane needed to support:
- Container lifting and unloading
- Container stacking in the yard
- Container transfer between different storage areas
Outdoor Operation
Since the crane works in an open container yard, the equipment needed to handle:
- Fixed rail operation
- Frequent lifting cycles
- Long-term outdoor working conditions
Stable Operation
The customer focused on:
- Accurate container positioning
- Smooth crane movement
- Reliable performance during continuous operation
These requirements helped define the RMG crane design for the project, including the structure, operating system, and overall configuration.
On-Site Inspection and Solution Design
Before manufacturing, WEIHUA’s technical team visited the project site in Mongolia to check the container yard layout, rail conditions, and operating environment. The site inspection helped the team understand the customer’s handling process and confirm the crane configuration.
After the inspection, WEIHUA developed an RMG crane solution based on the actual working conditions, including container handling requirements, travel routes, and outdoor operation needs.
RMG Crane Configuration for Mongolia Container Yard

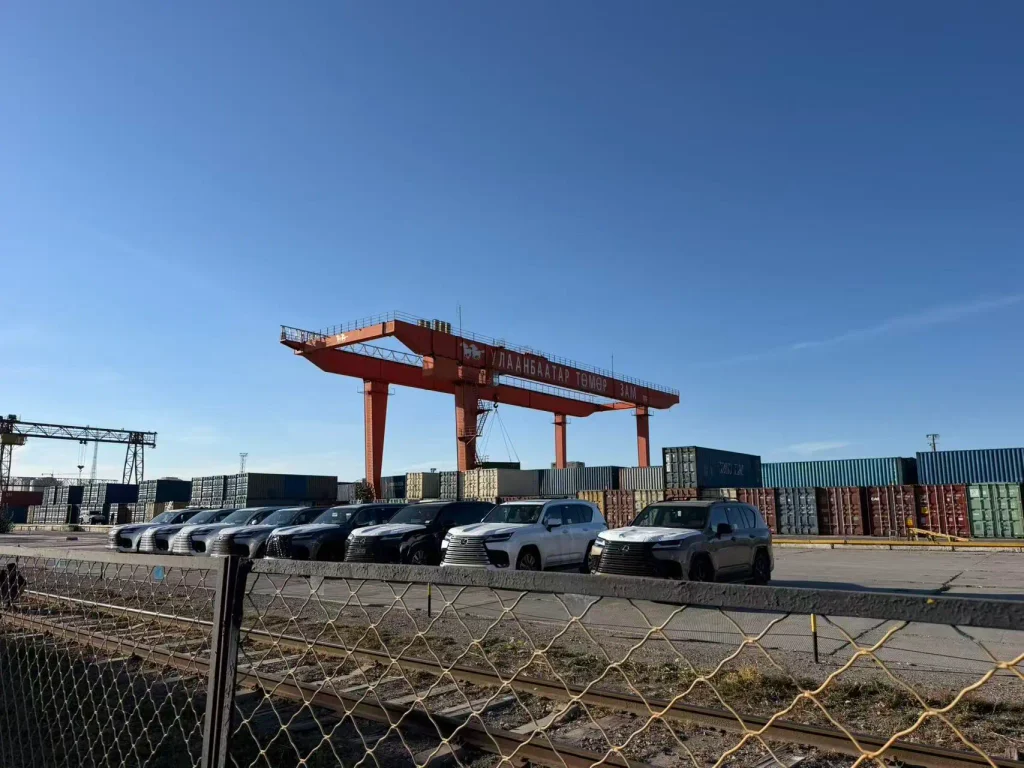

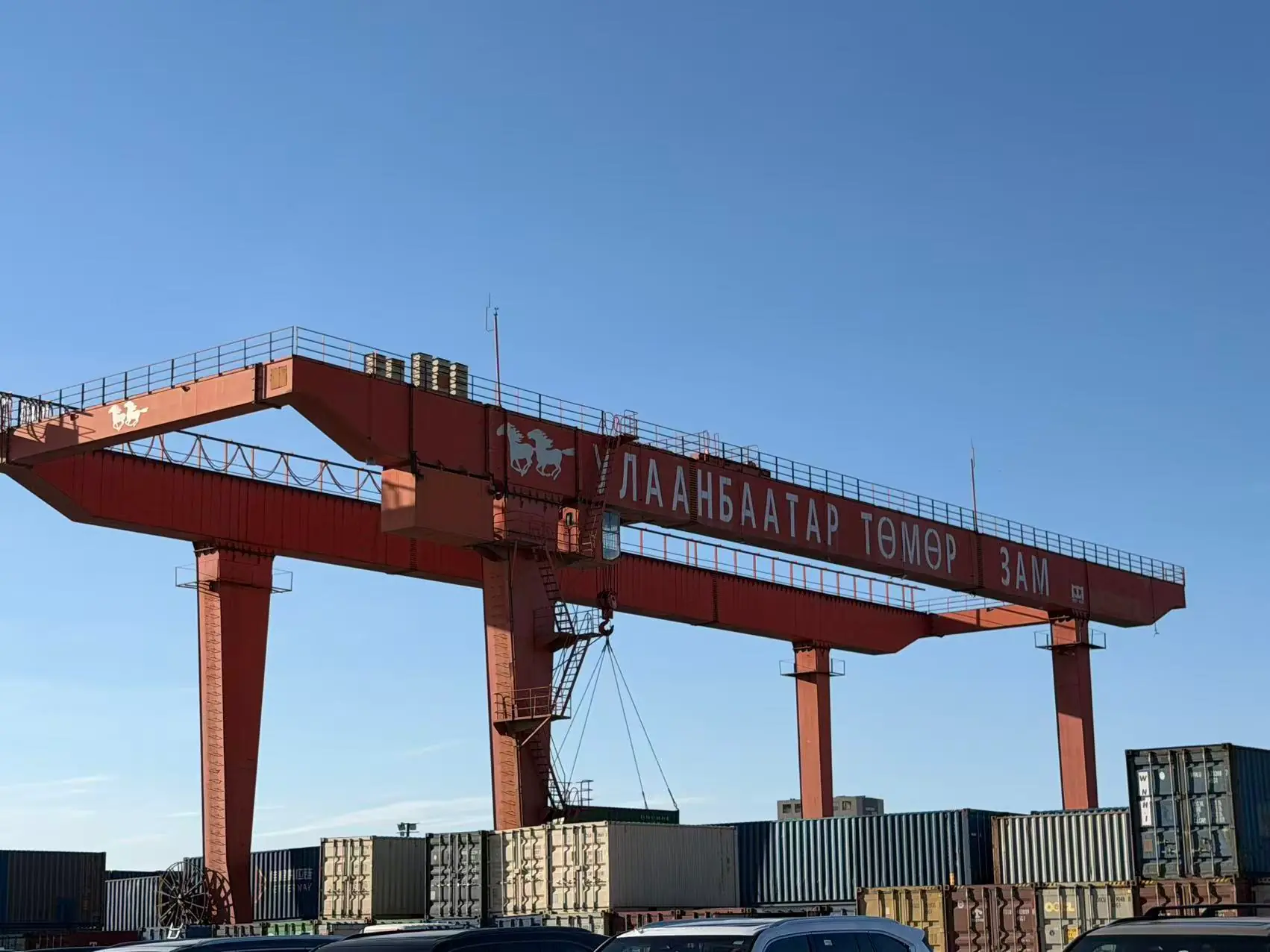

The RMG crane supplied by WEIHUA is installed in an outdoor container yard in Mongolia for container stacking and transfer operations. The equipment adopts a rail-mounted gantry structure with a double-girder design, providing stable movement along fixed tracks for repeated container handling tasks.
Equipment Configuration:
- Crane Type: Rail-mounted Gantry Crane (RMG)
- Application: Container stacking and yard transfer
- Structure: Double girder gantry crane
- Operation: Cabin control
- Running System: Rail-mounted travel system
- Handling Capacity: Designed according to container yard requirements
- Container Handling: 20ft / 40ft containers
- Working Environment: Outdoor container terminal
- Control System: Customized according to project requirements
WEIHUA designs RMG cranes according to customer requirements, including lifting capacity, span, lifting height, rail gauge, stacking height, control system, and operating conditions. Providing suitable equipment for stable container yard operations.
RMG Crane Application in Mongolia Container Yard
The WEIHUA RMG crane is used in the Mongolia container yard for daily container handling operations. The equipment works in the container storage area and supports container movement between different working zones.
Container Stacking
The RMG crane is used for moving containers between storage positions. The crane helps arrange containers in the yard according to the terminal operation plan and improves storage management.
Yard Transfer
The crane supports container transfer within the terminal area. It moves containers between loading points, storage areas, and other handling locations based on operational requirements.
Railway-Based Operation
The RMG crane runs on fixed rails with defined travel routes. The rail-mounted structure is suitable for repeated container handling tasks in organized yard environments.
The Mongolia RMG crane project shows how rail-mounted equipment supports container stacking, yard transfer, and regular logistics operations in a container terminal.
Specifications
RMG cranes are designed for container terminals, railway yards, and logistics facilities. The crane configuration can be adjusted according to container type, yard layout, handling capacity, and operating conditions.
| Parameter | Specification |
|---|---|
| Crane Type | RMG |
| Lifting Capacity | 20–400t |
| Span | 18–36m |
| Lifting Height | 10–40m |
| Working Class | A3–A8 / A6 / A8 |
| Girder Structure | Double Girder Box Girder |
| Container Size | 20ft / 40ft / 45ft |
| Operation | Cabin / Remote / PLC |
| Power Supply | 380V 50Hz 3Ph |
| Speed Control | Variable Frequency Drive |
| Control System | PLC / CMMS |
| Safety System | Overload / Limit / Anti-sway / Anti-collision |
| Design Standards | ISO / FEM / DIN / IEC / AWS |
WEIHUA provides customized RMG crane solutions based on container yard requirements. Parameters such as lifting capacity, span, lifting height, rail gauge, stacking height, control system, and power supply can be adjusted according to the project conditions.
Project Results
After being put into operation, the WEIHUA RMG crane supports daily container handling work in the Mongolia container yard. The equipment is used for container lifting, stacking, and transfer operations, reducing manual handling dependence and providing a fixed handling route for regular container movement.
The RMG crane handles 20ft, 40ft, and 45ft containers according to the yard requirements. The customized configuration supports stable positioning, repeated handling cycles, and outdoor operation. The project improves container yard management efficiency and provides reliable equipment support for daily logistics activities.
Features
Customized RMG Crane Design: Designed according to the Mongolia container yard layout, handling process, and operating conditions.
Stable Container Handling: Supports 20ft, 40ft, and 45ft container lifting, stacking, and transfer operations.
Outdoor Operation Capability: Configured for open yard environments with long-term outdoor working requirements.
Overseas Project Support: Provides export delivery, technical support, and after-sales service for international crane projects.
Why Choose WEIHUA for RMG Crane Projects?
WEIHUA provides RMG crane solutions for container yards, railway terminals, and logistics facilities. From crane design to after-sales support, we work with customers to match equipment with project requirements.
- Customized RMG Crane Design: Our engineering team designs RMG cranes according to yard layout, container handling process, lifting capacity, and operating conditions.
- Complete Crane Manufacturing Capability: From structure fabrication and assembly to testing and delivery, our production system covers the full crane manufacturing process.
- Overseas Project Experience: With international project experience, we understand export procedures, transportation coordination, and communication requirements for overseas customers.
- Container Handling Application Experience: Our RMG solutions are used for container yards, terminals, railway stations, and logistics centers with different handling conditions.
- Technical Design Support: We provide engineering support for crane configuration, structural design, control systems, and safety requirements.
- International Standards Compliance: Our cranes are manufactured according to ISO, FEM, DIN, IEC, AWS, and other applicable standards based on project needs.
- Installation and Commissioning Support: We offer technical guidance during installation, testing, and commissioning to support smooth project operation.
- Spare Parts and After-Sales Service: Our service team provides spare parts support and maintenance guidance for long-term crane operation.
- Flexible Customization Options: We customize lifting capacity, span, lifting height, control mode, power system, and safety configuration according to different project requirements.
WEIHUA combines customized design, manufacturing capability, overseas project experience, and technical service to provide reliable RMG crane solutions for global container handling projects.
WEIHUA RMG Crane Customization Range
WEIHUA customizes RMG cranes according to container yard layout, handling requirements, and operating conditions. Main customization options include:
- Lifting Capacity: Customized from 20t to 400t based on container handling requirements.
- Span: Customized from 18m to 36m according to yard layout and rail distance.
- Lifting Height: Customized from 10m to 40m based on container stacking requirements.
- Container Size: Supports 20ft, 40ft, and 45ft container handling.
- Stacking Height: Customized for 3–8 container layer stacking applications.
- Rail Gauge: Designed according to existing rail layout and site conditions.
- Working Class: Available from A3 to A8 for different operation frequencies.
- Control System: Available with cabin control, remote control, and PLC automatic control.
- Power Supply: Configured for 380V 50Hz three-phase power or project-specific requirements.
- Safety System: Customized with overload protection, anti-sway system, anti-collision devices, and limit protection.
- Design Standard: Manufactured according to ISO, FEM, DIN, IEC, AWS, and other standards.
Conclusion
This Mongolia RMG crane project shows WEIHUA’s approach to providing container handling solutions for overseas customers. The RMG crane was designed for container yard operations, supporting container lifting, stacking, and transfer tasks with a customized configuration based on site conditions and handling requirements.
WEIHUA provides RMG crane solutions for container terminals, railway yards, and logistics facilities worldwide. With customized design, manufacturing experience, export service, and technical support, we work with customers to develop suitable crane solutions for their applications. Contact us to discuss your RMG crane requirements and project needs.
