RTG Crane Spreader

Introdução do Produto

The RTG Crane Spreader is the lifting device installed beneath a Rubber-Tyred Gantry (RTG) crane trolley. It is used for container lifting, transfer, stacking, loading, and unloading operations. By connecting to the container corner castings through a twistlock system, the spreader provides a secure connection during handling in ports, container terminals, and inland container yards.

tipo

Peças

Especificações

RTG crane spreaders are classified by their structure and operating functions. Common options include fixed, telescopic, rotating, and automatic spreaders.

Fixed RTG Spreader

A fixed RTG spreader has a fixed frame length and is designed for single-size container handling. The structure is simple and mainly used in dedicated or stable operating conditions.

• Container size: 20ft / 40ft (fixed configuration)
• Structure type: Non-adjustable frame
• Lifting mode: Single lift operation
• Maintenance level: Low

Applications: used in facilities handling a single container size or specialized lifting operations.

Enviar Pedido 

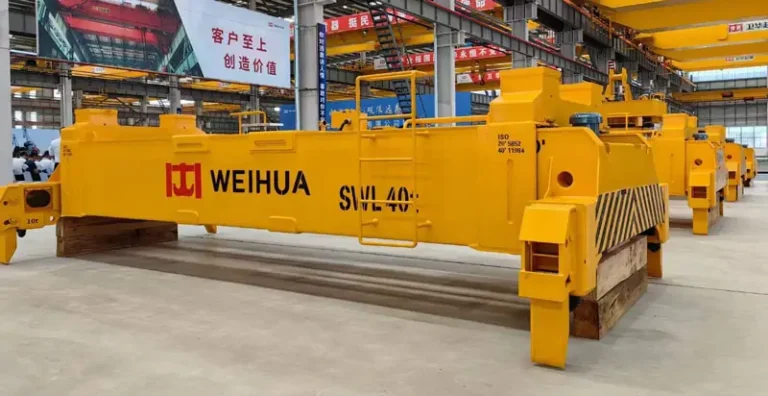

Telescopic RTG Spreader

A telescopic RTG spreader uses a hydraulic or electric extension system to adjust its frame length for different ISO container sizes. It is the most common type in container terminals.

• Container size: 20ft / 40ft / 45ft
• Adjustment type: Hydraulic or electric telescopic
• Operation mode: Single lift
• Application range: Port / ICD / rail yard / logistics terminal

Applications: Suitable for ports, inland container depots, rail terminals, and logistics yards handling mixed container sizes.

Enviar Pedido 

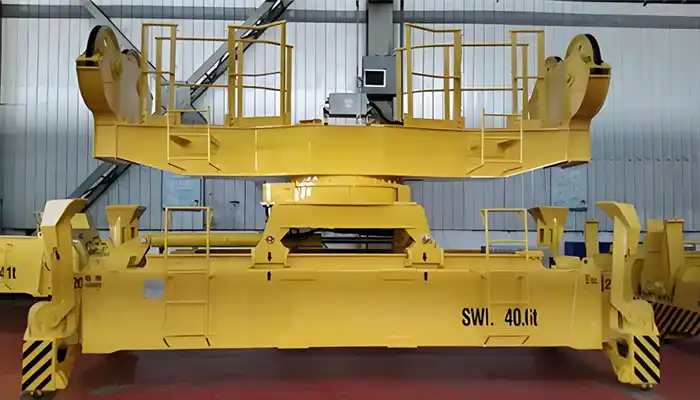

Rotating RTG Spreader

A rotating RTG spreader is equipped with a controlled rotation function to assist container alignment during loading and unloading. It is used where container positioning is not consistent.

• Rotation angle: ±5° (typical configuration)
• Container size: 20ft / 40ft / 45ft
• Control mode: Hydraulic or electric drive
• Function: Position adjustment during engagement

Applications: Used in container yards where precise container positioning is required or where containers may not be perfectly aligned.

Enviar Pedido 

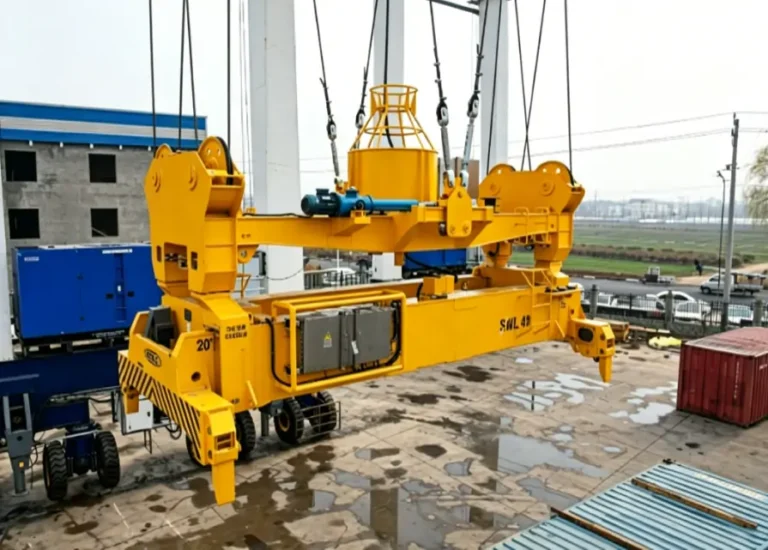

Automatic RTG Spreader

An automatic RTG spreader integrates sensors and control systems for locking, positioning, and operation feedback. It is used in semi-automated and automated container terminals.

• Operation mode: Manual / Semi-automatic / Automatic
• Sensor system: Twistlock + position + load monitoring
• Control interface: RTG PLC integrated system
• Application: High-throughput / automated terminals

Applications:Suitable for high-throughput container terminals, semi-automated facilities, and automated port operations.

Enviar Pedido 

Peças

RTG crane spreader is built from several core mechanical and control components that work together during container lifting and stacking operations.

• Main Frame Structure: Steel structure that carries the spreader and container load. Welded high-strength steel, designed for lifting and travel loads.
• Telescopic Beam System: Adjusts length for 20ft and 40ft containers. Extension and retraction driven by hydraulic or electric system.
• Twistlock Assembly: Four corner locks that rotate 90° and lock into container corner castings for lifting.
• Hydraulic / Electric Drive System
• Drives telescoping and twistlock action. Hydraulic type for higher force, electric type for simpler maintenance.
• Sensors and Monitoring System: Checks lock position, travel limits, and load condition during operation.
• Anti-Collision Protection: Prevents contact between spreader, container, and nearby structures through buffers and sensors.

The structure and components of the spreader determine its stability, safety, and operating performance in container handling work.

Especificações

Parâmetro	Especificação
Spreader Type	Fixed / Telescopic / Rotating / Automatic
Container Sizes	20ft / 40ft / 45ft ISO Containers
Safe Working Load (SWL)	Customizable
Telescopic Adjustment	Hydraulic or Electric
Twistlock System	ISO Standard Twistlocks
Rotation Angle	Optional (Depending on Model)
Modo de controle	Manual / Semi-Automatic / Automatic
Sistema de acionamento	Hydraulic or Electric
Anti-Sway System	Optional
Position Monitoring	Optional
Proteção contra sobrecarga	Available
Fonte de Alimentação	Customized According to RTG System
Temperatura de operação	Customized
Surface Protection	Marine Environment Coating Available
Compliance Standards	FEM / DIN / IEC / AWS / GB

Specifications can be customized to crane capacity, container-handling requirements, automation level, and project conditions.

Vantagens

RTG selection depends on operating requirements, yard conditions, and long-term cost considerations. The main factors below are used to evaluate whether a system fits the intended container handling operation.

A proper RTG configuration is determined by balancing lifting performance, yard layout, mobility, power system, automation level, and lifecycle cost based on actual terminal conditions.

Integration with RTG Crane Systems

RTG crane spreaders are connected to the crane’s lifting, power, and control systems. These systems work together during container lifting, transfer, and stacking operations.

Mechanical Integration

The spreader is connected to the RTG trolley and hoisting system. Lifting, lowering, and container positioning are completed through coordinated trolley and hoist movements.

Electrical Integration

Electrical connections provide power for telescopic beams, twistlocks, sensors, and auxiliary equipment installed on the spreader.

Control System Integration

Control signals are exchanged between the spreader and RTG control cabinet for locking, unlocking, telescoping, and status indication functions.

Compatibilidade com Automação

The spreader can be configured for manual, semi-automatic, or automatic RTG operations according to terminal requirements.

Remote Monitoring Options

Equipment status and operating information can be transmitted to remote control rooms and terminal management systems.

Mechanical, electrical, and control integration are important parts of RTG spreader operation, affecting container handling performance, equipment management, and terminal operations.

Recursos de segurança

RTG crane spreaders are equipped with multiple safety devices for container handling, equipment protection, and operational control.

• Twistlock Status Monitoring: Monitors the lock and unlock status of each twistlock during container handling operations.
• Overload Protection: Stops lifting operations when the load exceeds the rated capacity of the spreader.
• Emergency Release Function: Allows manual or emergency release of twistlocks when required during maintenance or special operating conditions.
• Anti-Collision System: Detects obstacles around the spreader and reduces the risk of contact with containers, vehicles, or structures.
• Position Detection Sensors: Monitor spreader position, telescopic beam movement, and container alignment during operation.

These safety features provide continuous monitoring of lifting, locking, positioning, and equipment status during daily operations.

Aplicações

RTG crane spreaders are widely used in container handling operations across ports, terminals, logistics facilities, and intermodal transportation hubs.

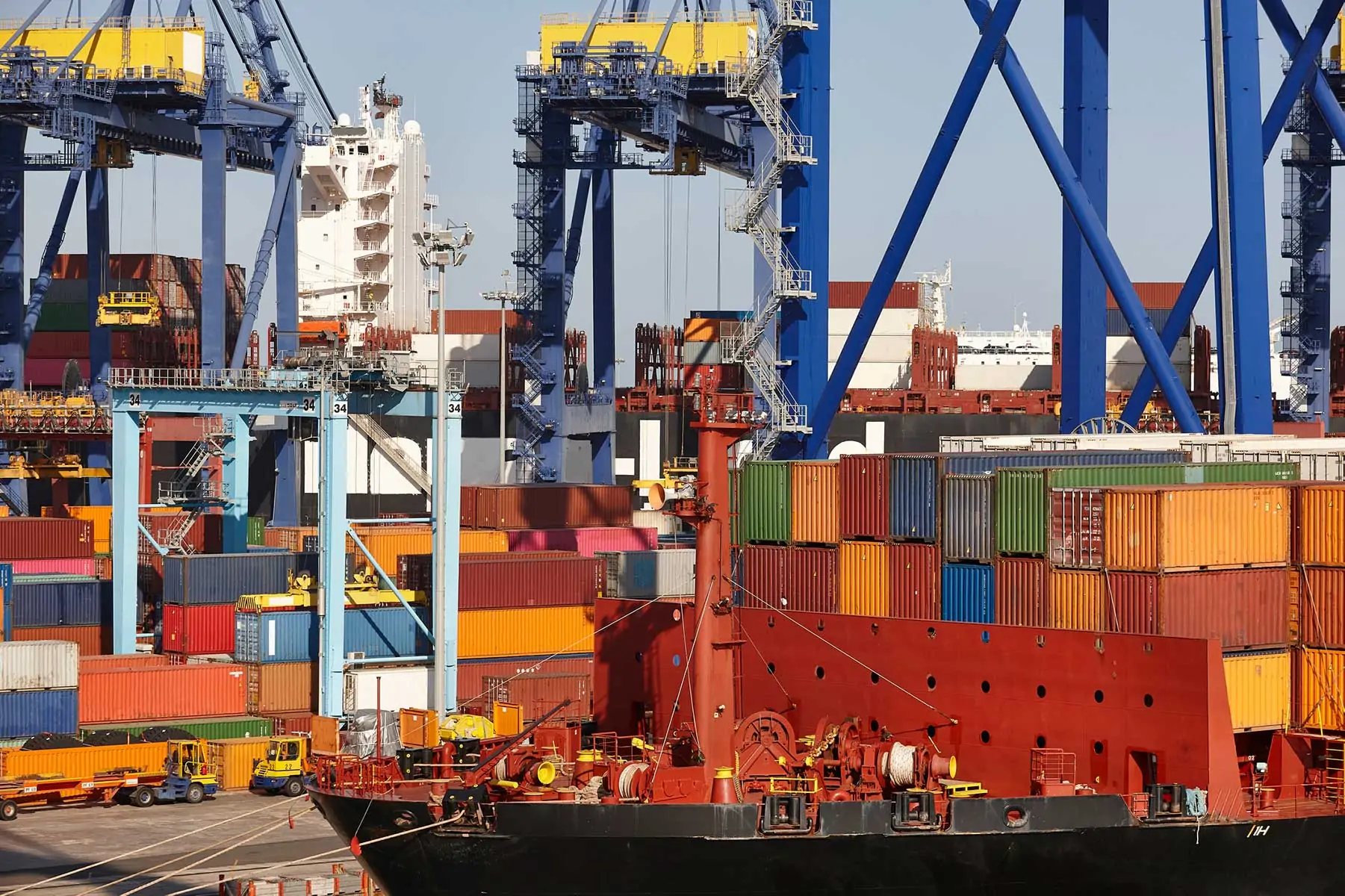

Port Container Handling

Container Ports, Marine Terminals, Seaport Container Yards

Used for container loading, unloading, transfer, and stacking operations between vessels, trucks, and storage yards.

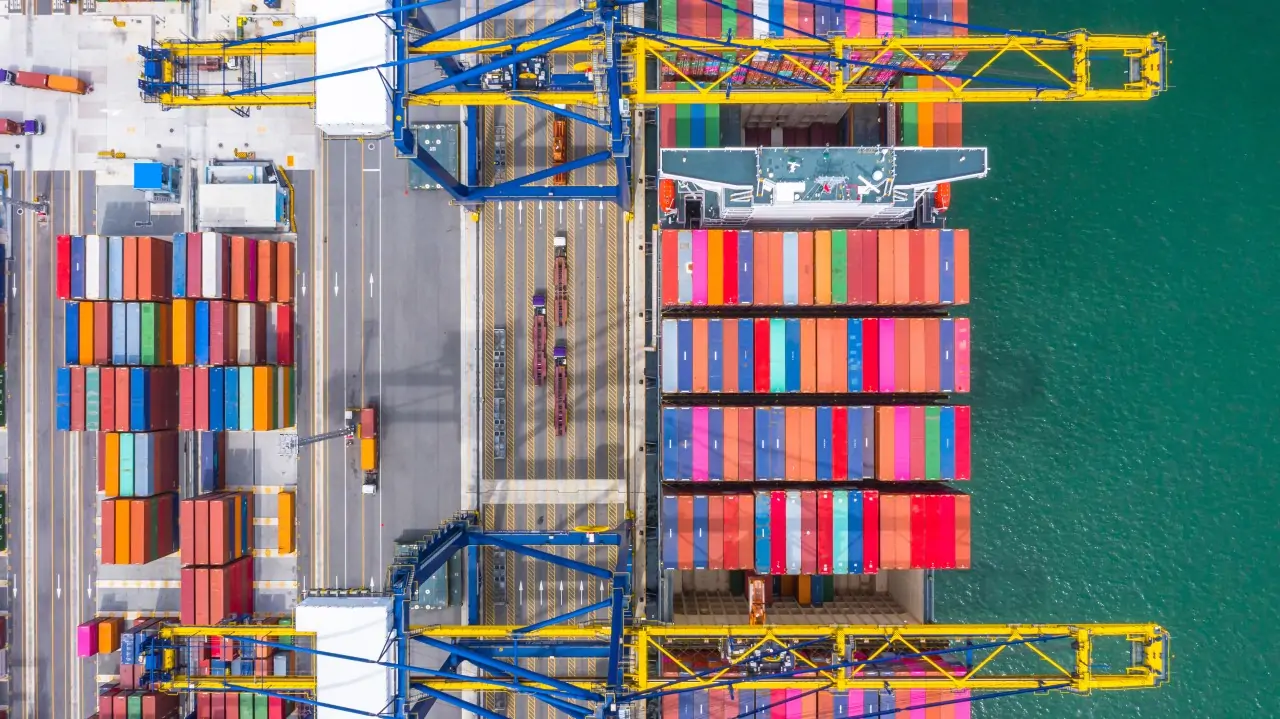

Container Storage Yards

Container Yards (CY), Inland Container Depots (ICD), Dry Ports

Used for container stacking, retrieval, and yard transfer operations where high storage density is required.

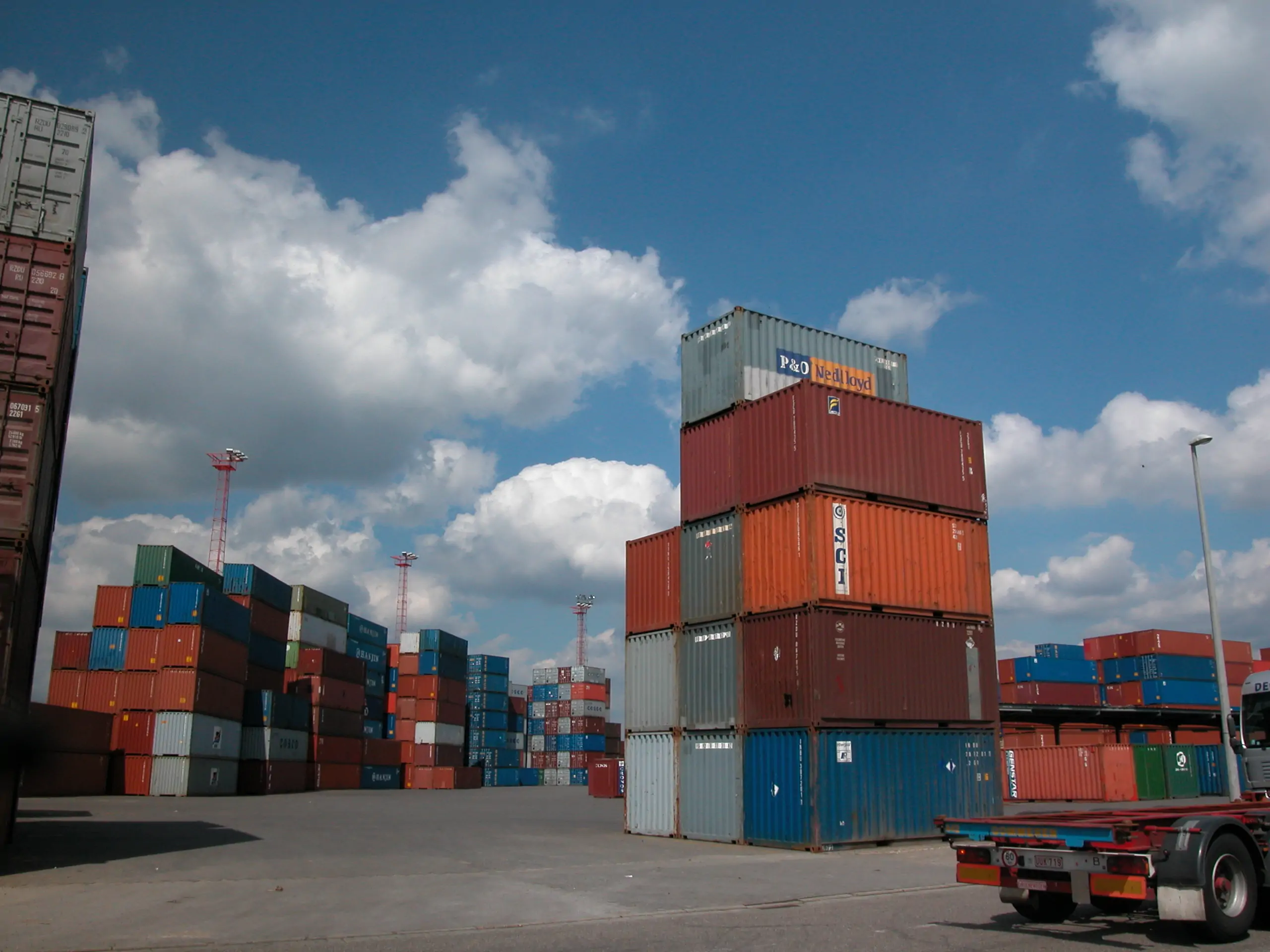

Logistics and Distribution Centers

Logistics Parks, Freight Distribution Centers, Warehousing Facilities

Used for container movement, temporary storage, and cargo transfer within logistics operations.

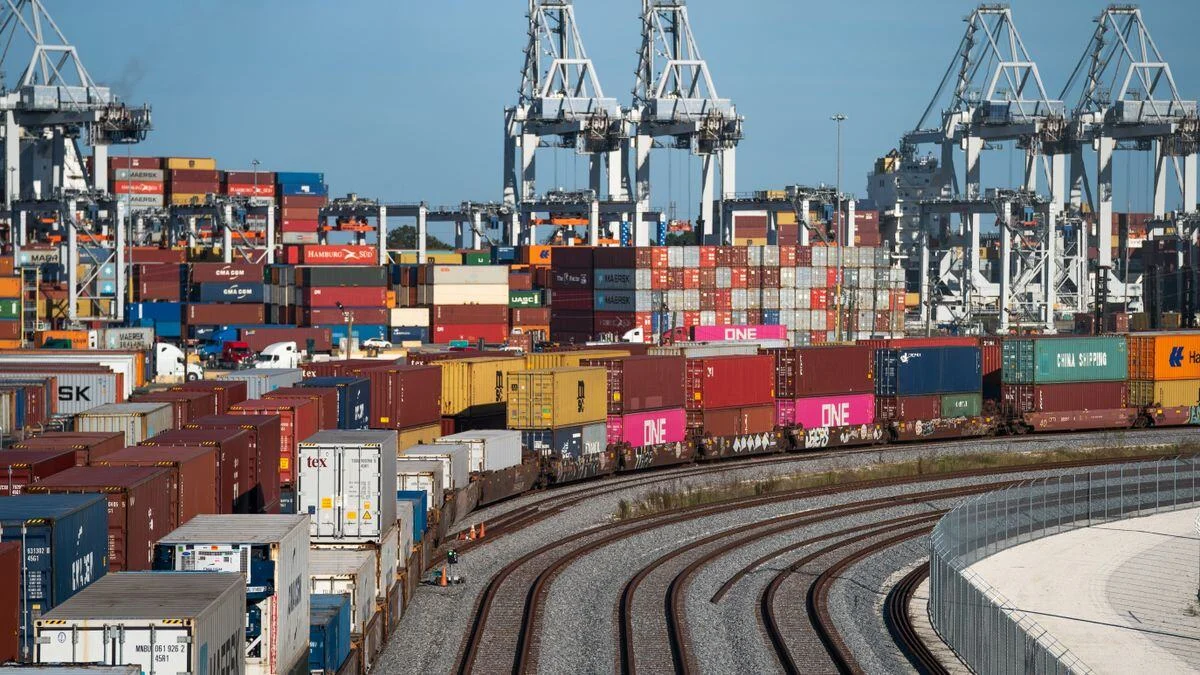

Intermodal Transportation Terminals

Rail Freight Terminals, Intermodal Hubs, Truck-to-Rail Transfer Stations

Used for container transfer between rail wagons, trucks, and storage areas.

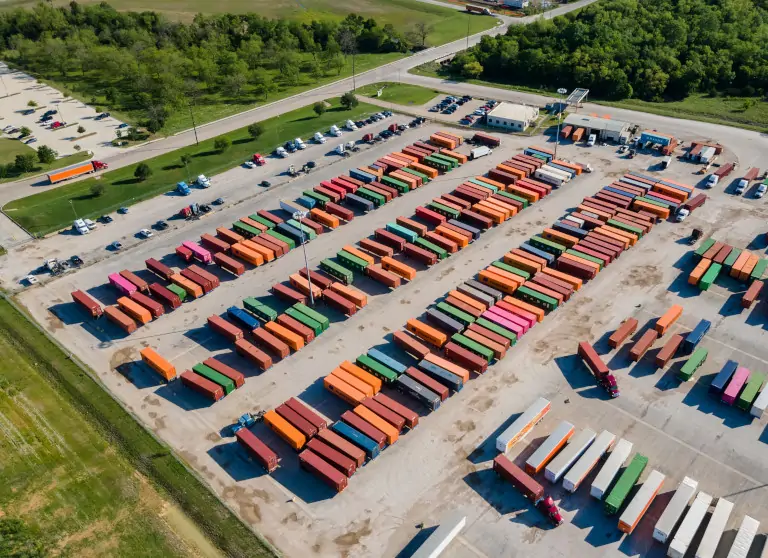

Temporary Storage and Project Sites

Temporary Container Yards, Construction Logistics Bases, Project Cargo Storage Areas

Used where flexible deployment and container handling capacity are required without fixed rail infrastructure.

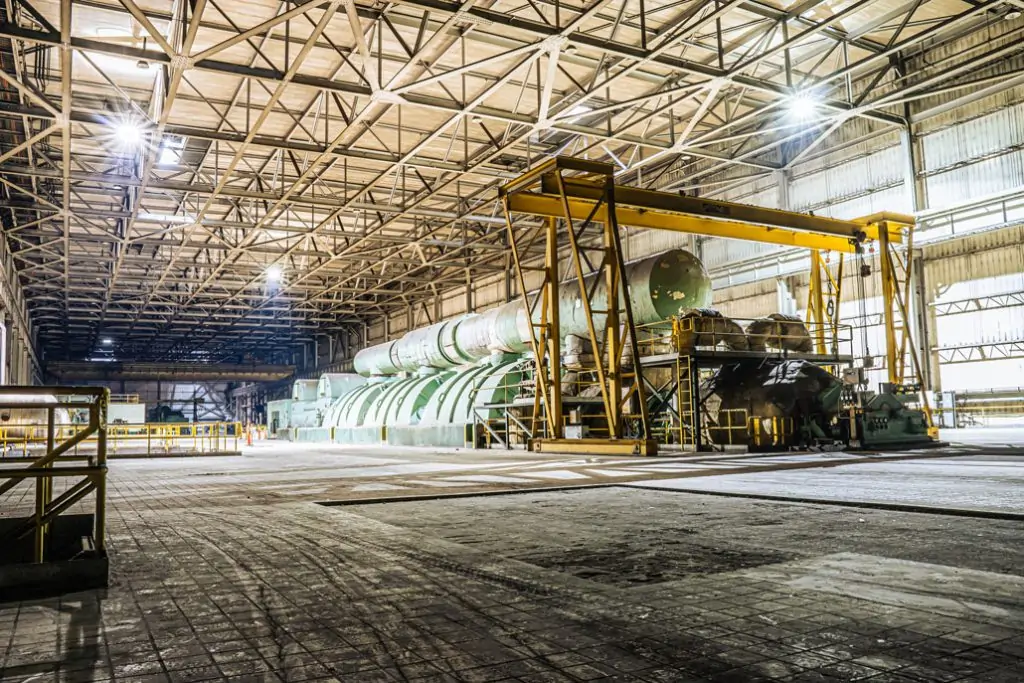

Industrial Container Handling

Manufacturing Plants, Steel Facilities, Energy Projects, Industrial Logistics Centers

Used for handling containers and specialized cargo within industrial transportation and storage operations.

Application requirements, container volume, and operating conditions determine the most suitable RTG crane spreader configuration for each facility.

Customization Options

RTG crane spreaders can be customized according to container specifications, terminal operating conditions, power supply requirements, and environmental factors.

The final configuration is determined by container specifications, terminal conditions, and project requirements.

Why Choose WEIHUA RTG Crane Spreaders?

Extensive Container Handling Experience

Years of experience in crane and container handling equipment manufacturing for ports, terminals, and logistics facilities.

Custom Engineering Solutions

Spreader configurations are available for different container sizes, lifting capacities, automation levels, and project requirements.

Reliable Manufacturing Quality

Manufactured with high-strength materials and strict quality control processes to support long-term operation in demanding environments.

International Standard Compliance

Designed and manufactured in accordance with FEM, DIN, IEC, AWS, GB, and other applicable industry standards.

Port and Marine Environment Protection

Heavy-duty surface treatment and corrosion protection options are available for coastal and high-humidity operating conditions.

Technical Support and After-Sales Service

Installation guidance, spare parts support, technical consultation, and after-sales service are provided throughout the equipment lifecycle.

WEIHUA specializes in the design and manufacture of RTG crane spreaders for container handling applications. From standard configurations to customized projects, we provide equipment, technical support, and service throughout the project lifecycle. Contacte-nos for specifications, pricing, customization options, and project consultation.

Perguntas frequentes

What containers can an RTG crane spreader handle?

Most RTG crane spreaders are designed for standard ISO containers, including 20ft, 40ft, and 45ft containers. Customized configurations are available for special container types and project requirements.

What is the difference between a fixed spreader and a telescopic spreader?

A fixed spreader is designed for a specific container size, while a telescopic spreader can adjust its length to handle different container sizes. Telescopic spreaders are the most common choice for modern container terminals.

What lifting capacity is available for RTG crane spreaders?

Lifting capacity depends on crane specifications and handling requirements. Configurations are available for both standard container operations and heavy-duty lifting applications.

Can RTG crane spreaders be integrated with automated terminal systems?

Yes. RTG crane spreaders can be configured for manual, semi-automatic, or automatic operation and can be connected to terminal control and monitoring systems.

What safety features are included in an RTG crane spreader?

Common safety features include twistlock status monitoring, overload protection, emergency release functions, position detection sensors, and anti-collision systems.

Are corrosion-resistant options available for marine environments?

Yes. RTG crane spreaders can be equipped with heavy-duty protective coatings, corrosion-resistant components, sealed electrical systems, and high-IP protection for coastal and port environments.

What maintenance is required for an RTG crane spreader?

Routine maintenance typically includes inspection of twistlocks, telescopic mechanisms, hydraulic or electric drive systems, sensors, fasteners, and structural components. Maintenance schedules vary according to operating conditions and workload.

Can RTG crane spreaders be customized for specific projects?

Yes. Configuration options may include lifting capacity, automation level, power system, corrosion protection, and special packages for low-temperature, high-temperature, or high-humidity environments.
